12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT

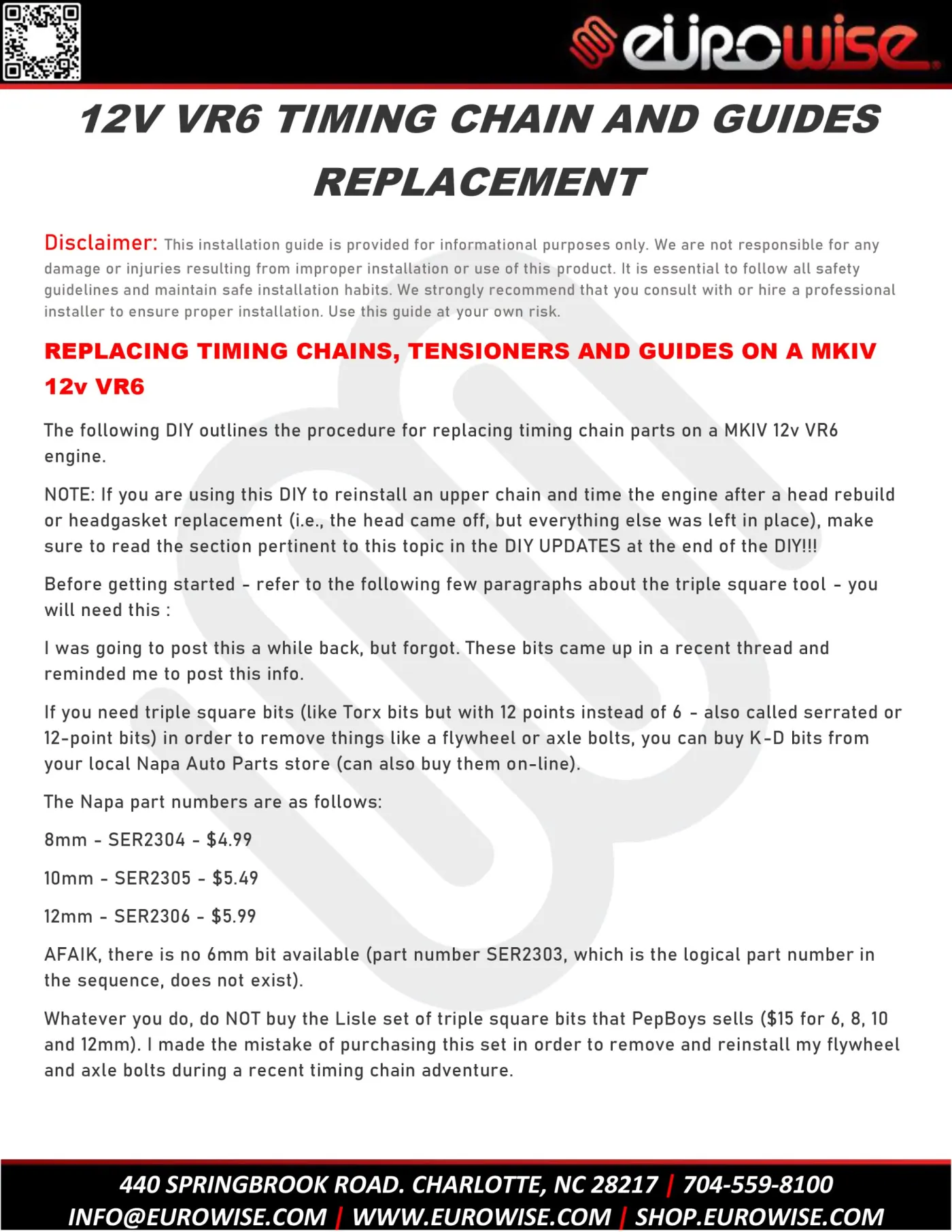

  1. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 1 of 45

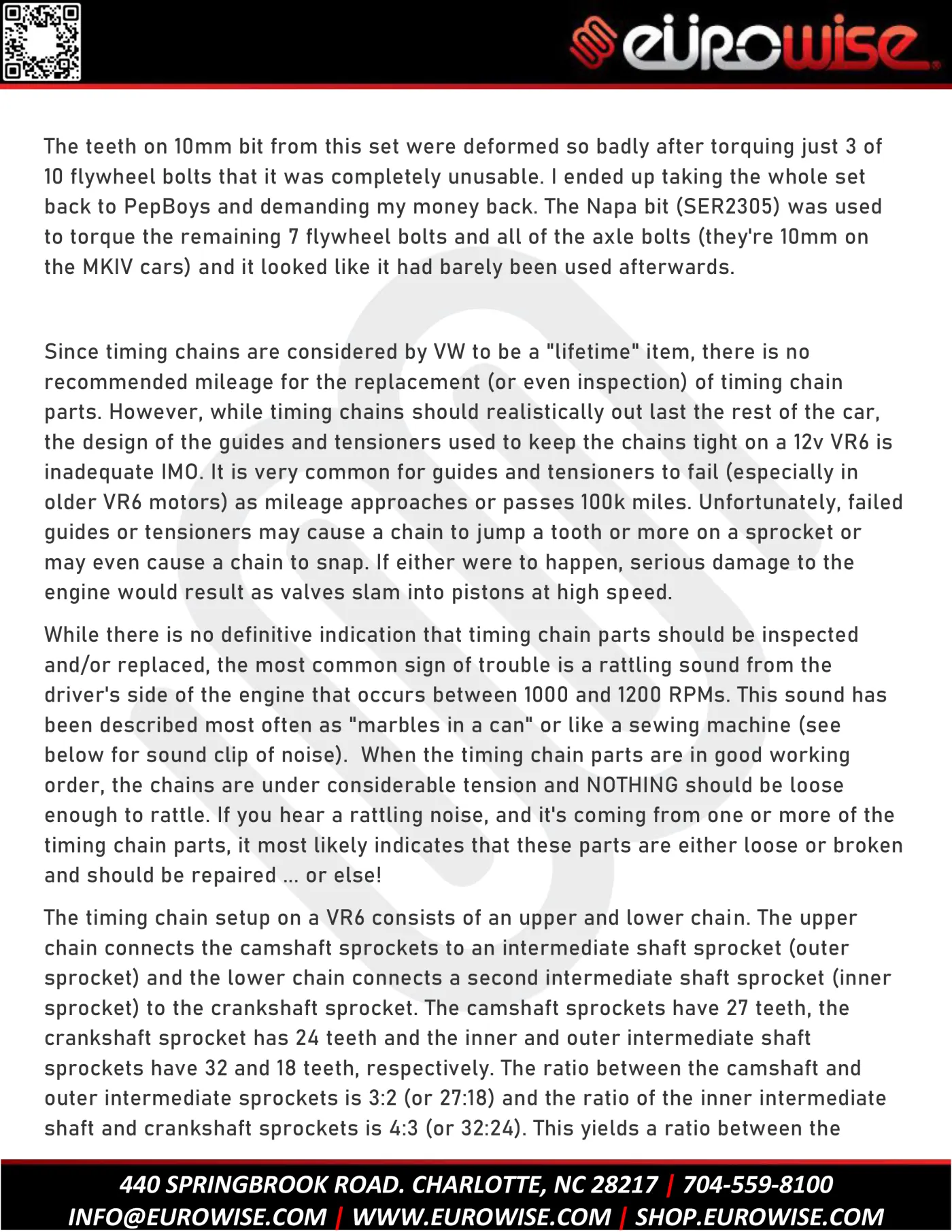

  2. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 2 of 45

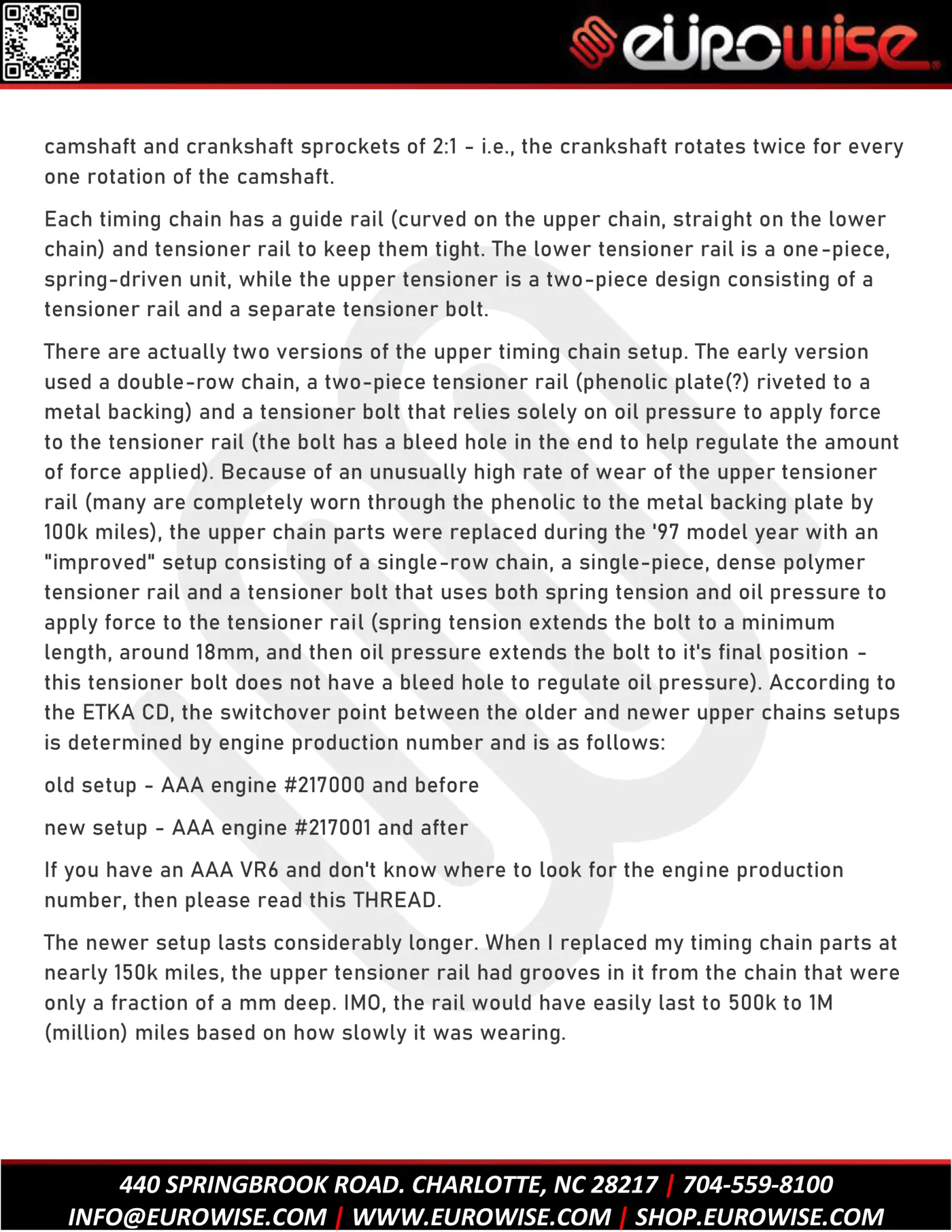

  3. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 3 of 45

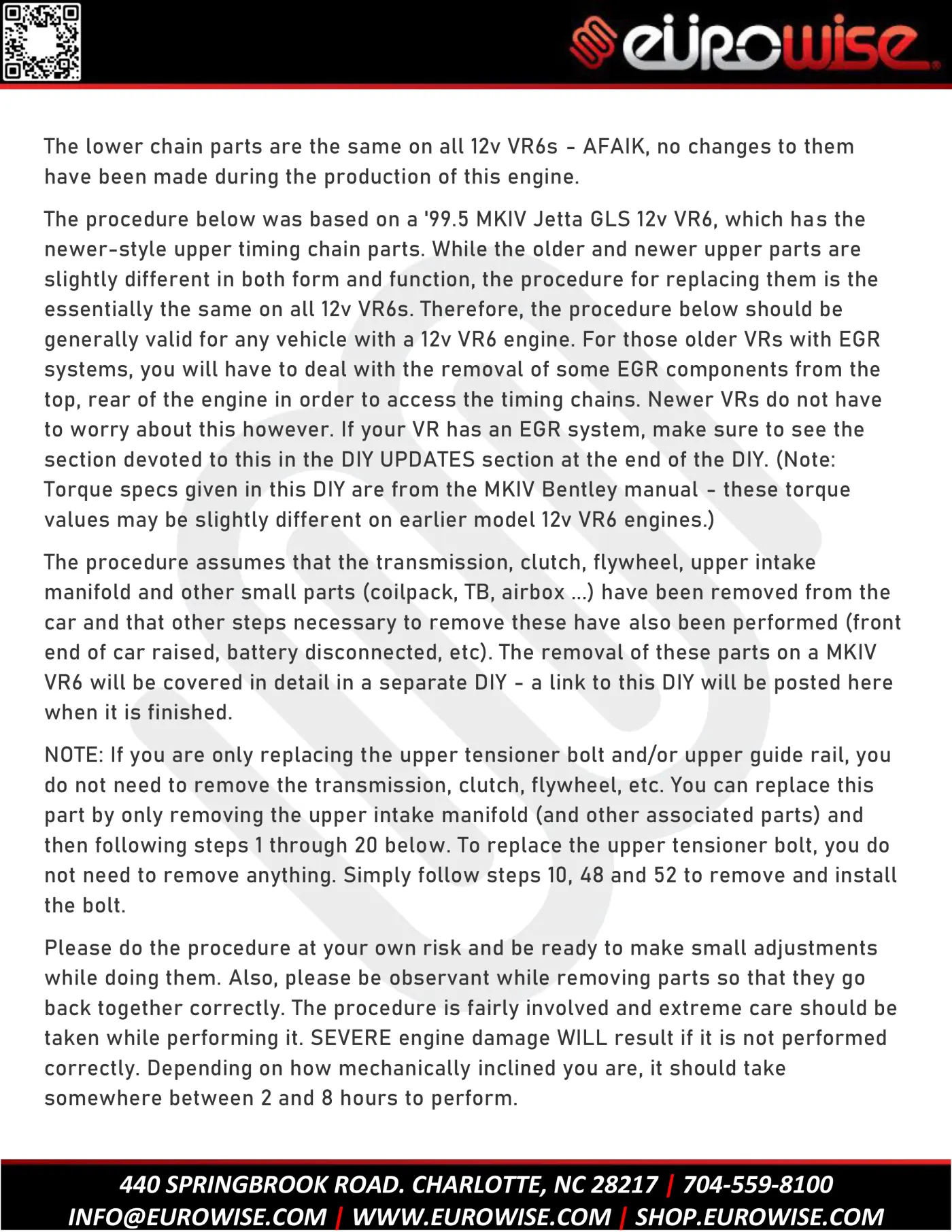

  4. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 4 of 45

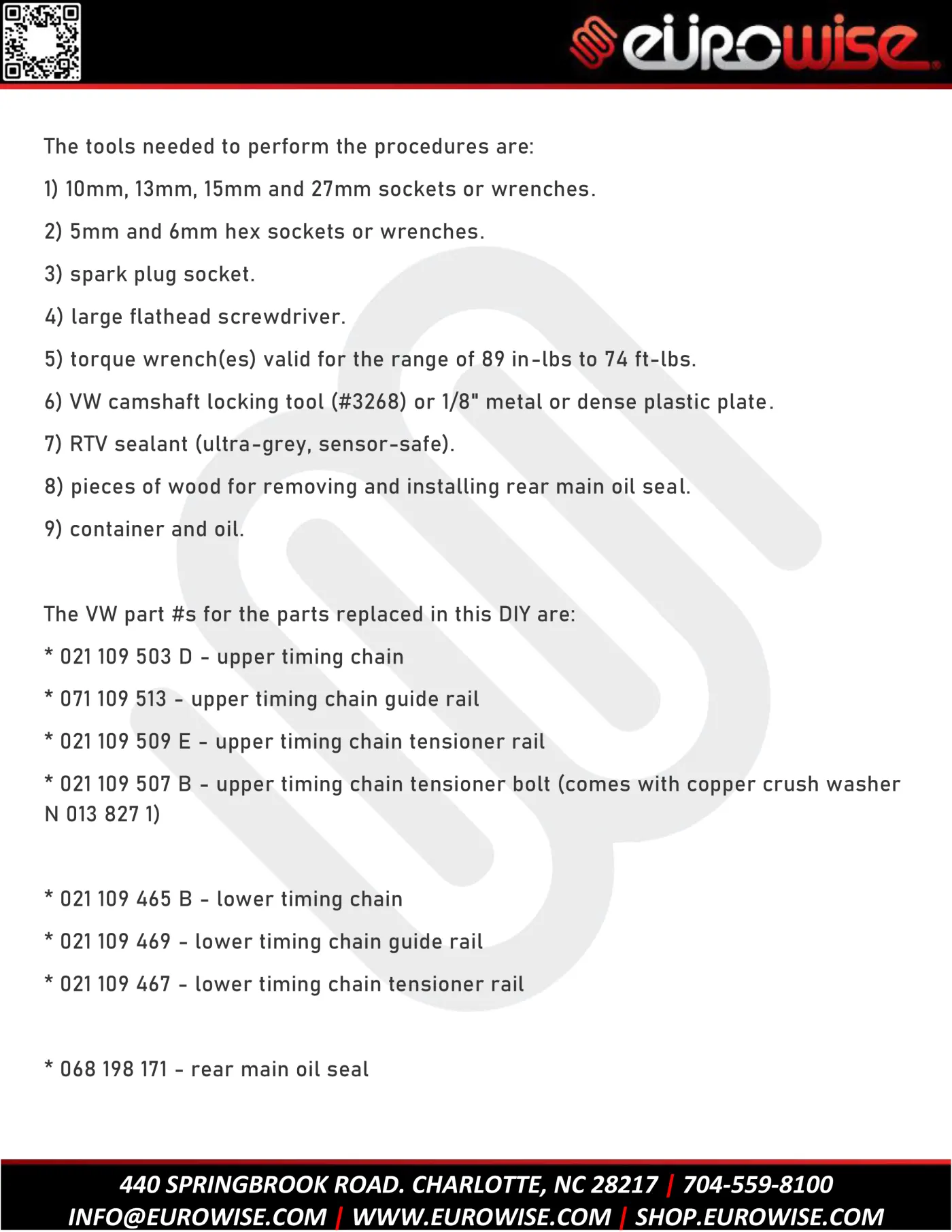

  5. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 5 of 45

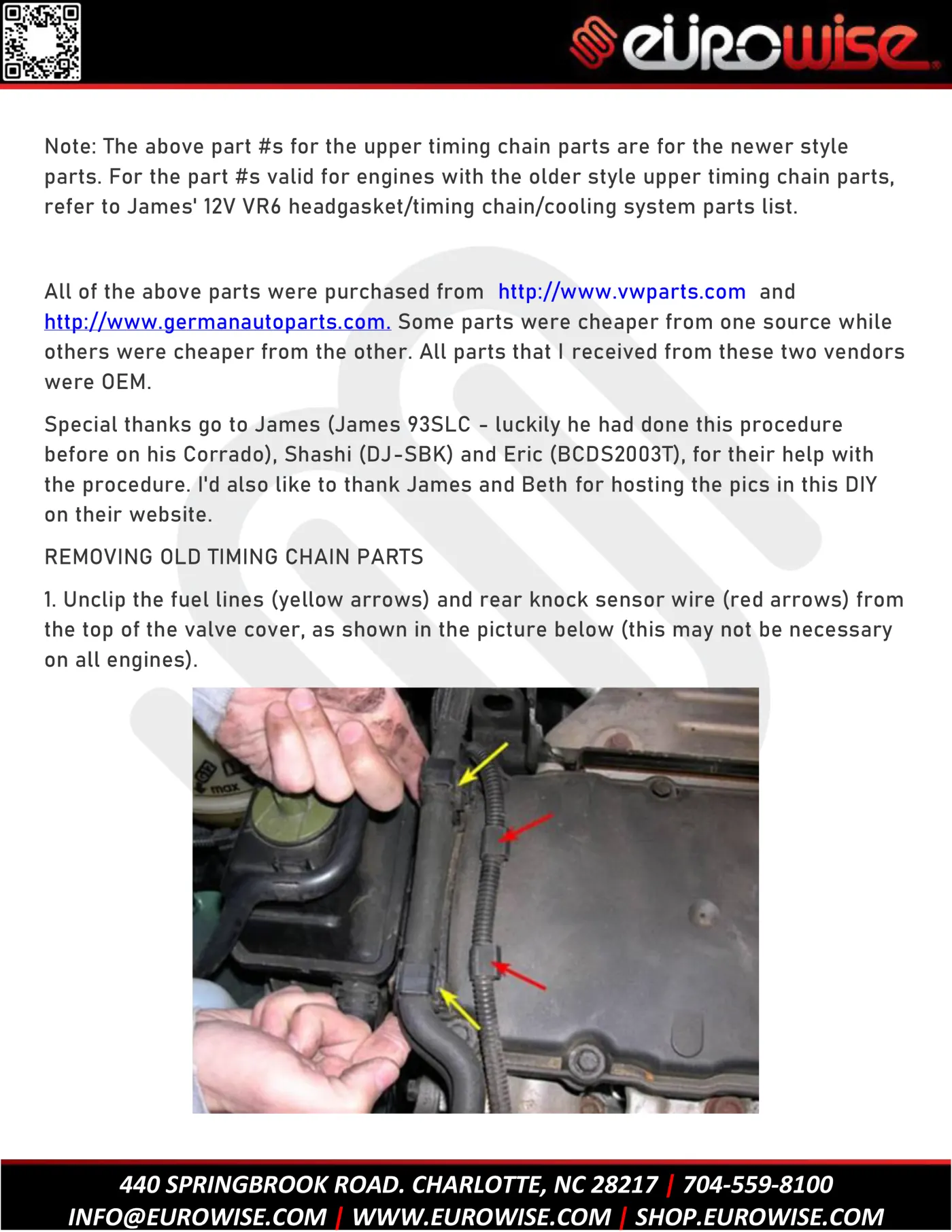

  6. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 6 of 45

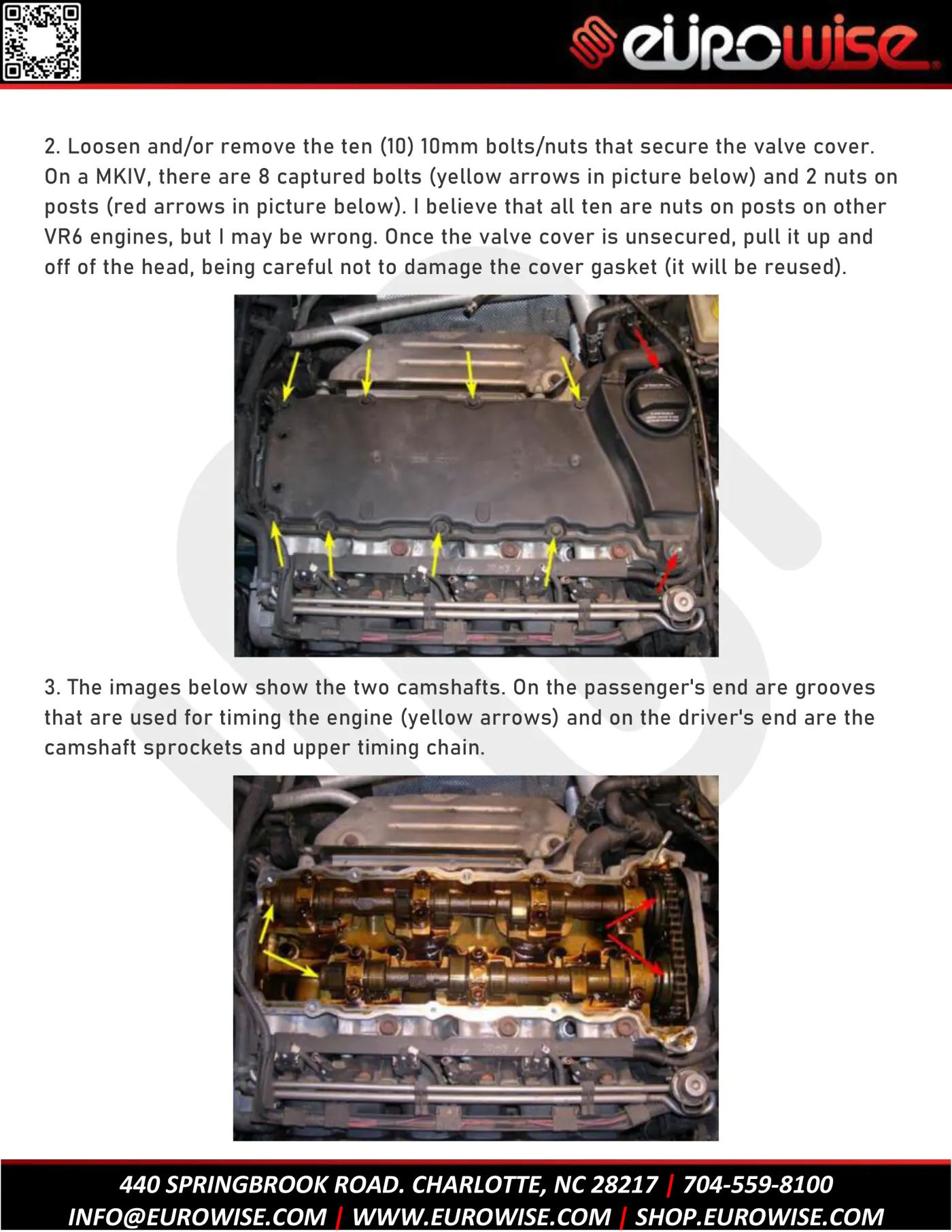

  7. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 7 of 45

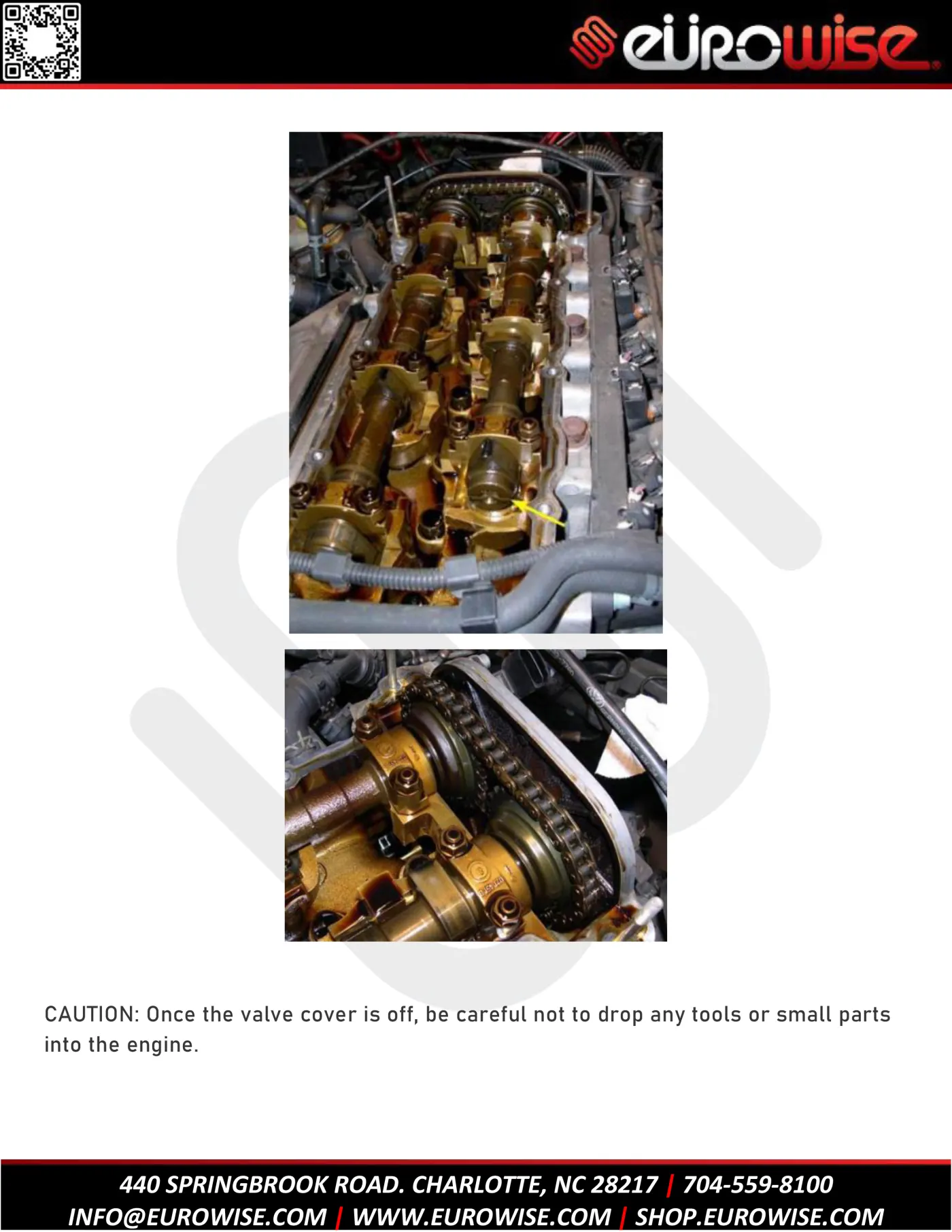

  8. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 8 of 45

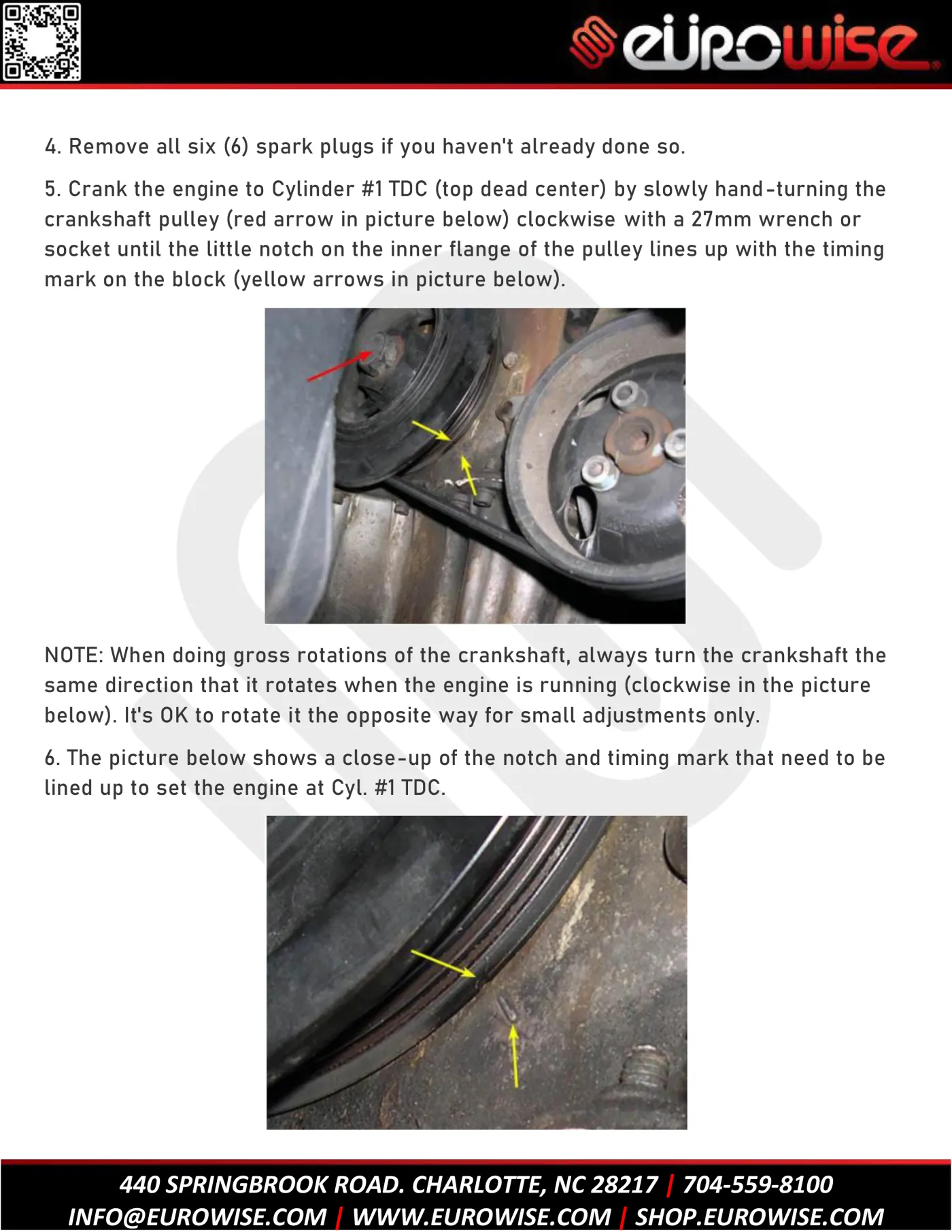

  9. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 9 of 45

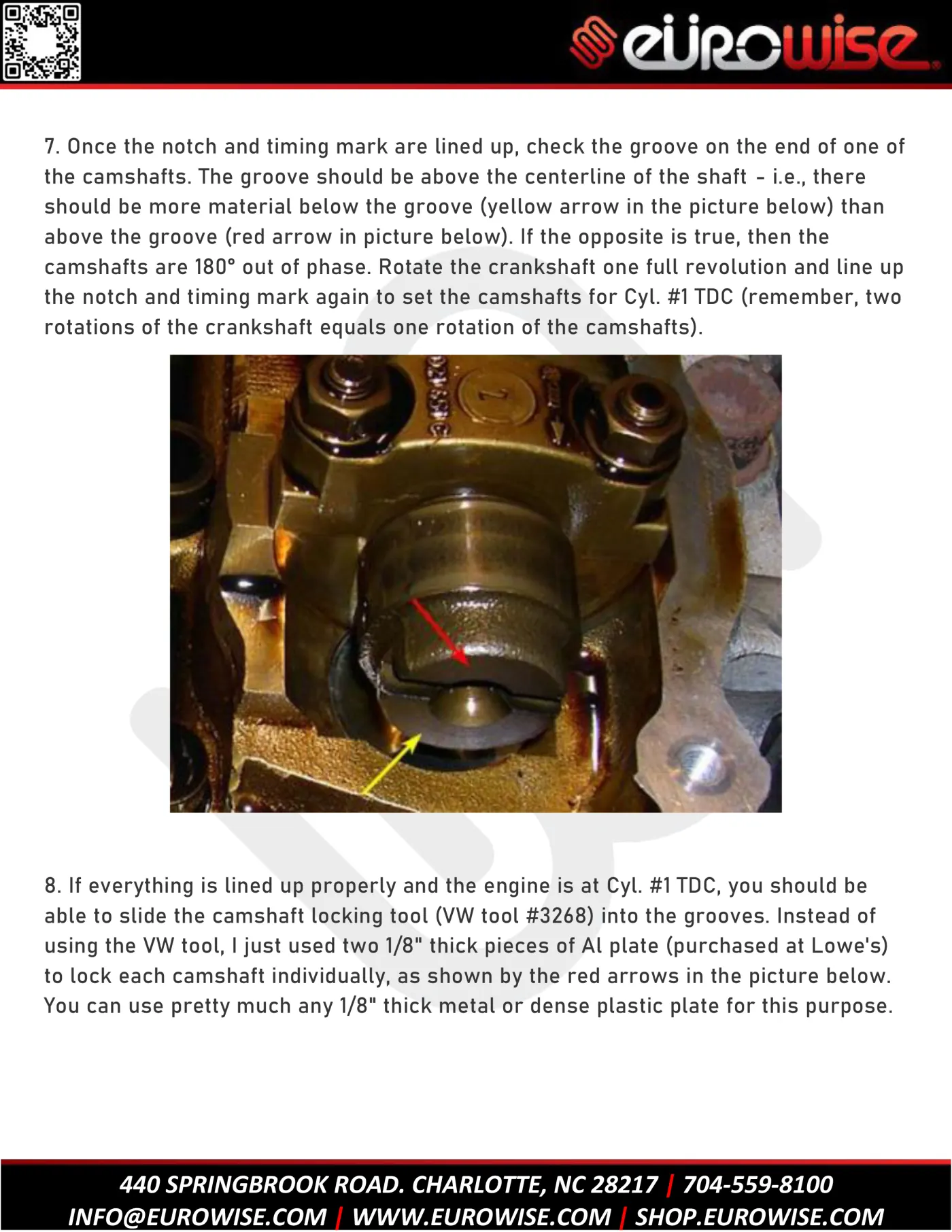

  10. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 10 of 45

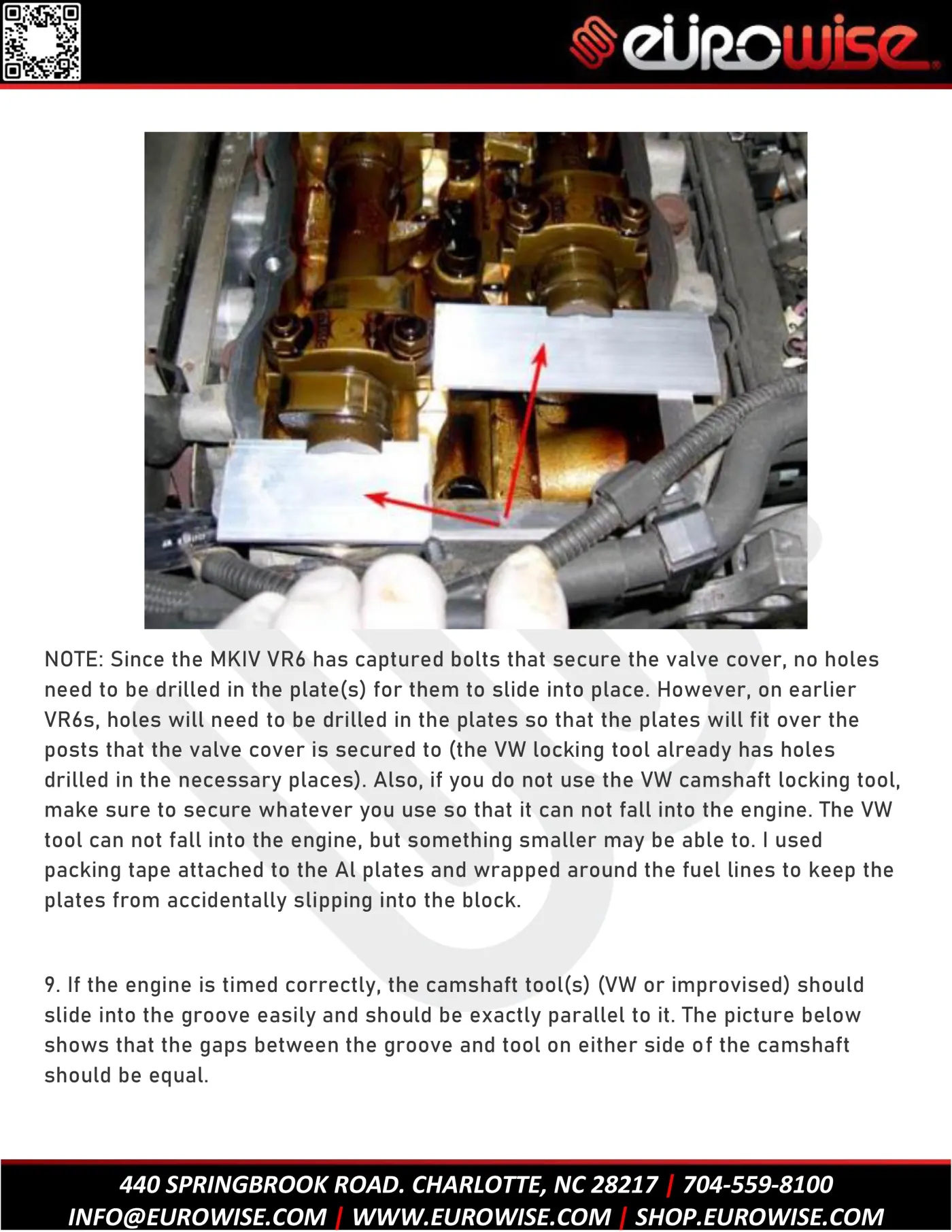

  11. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 11 of 45

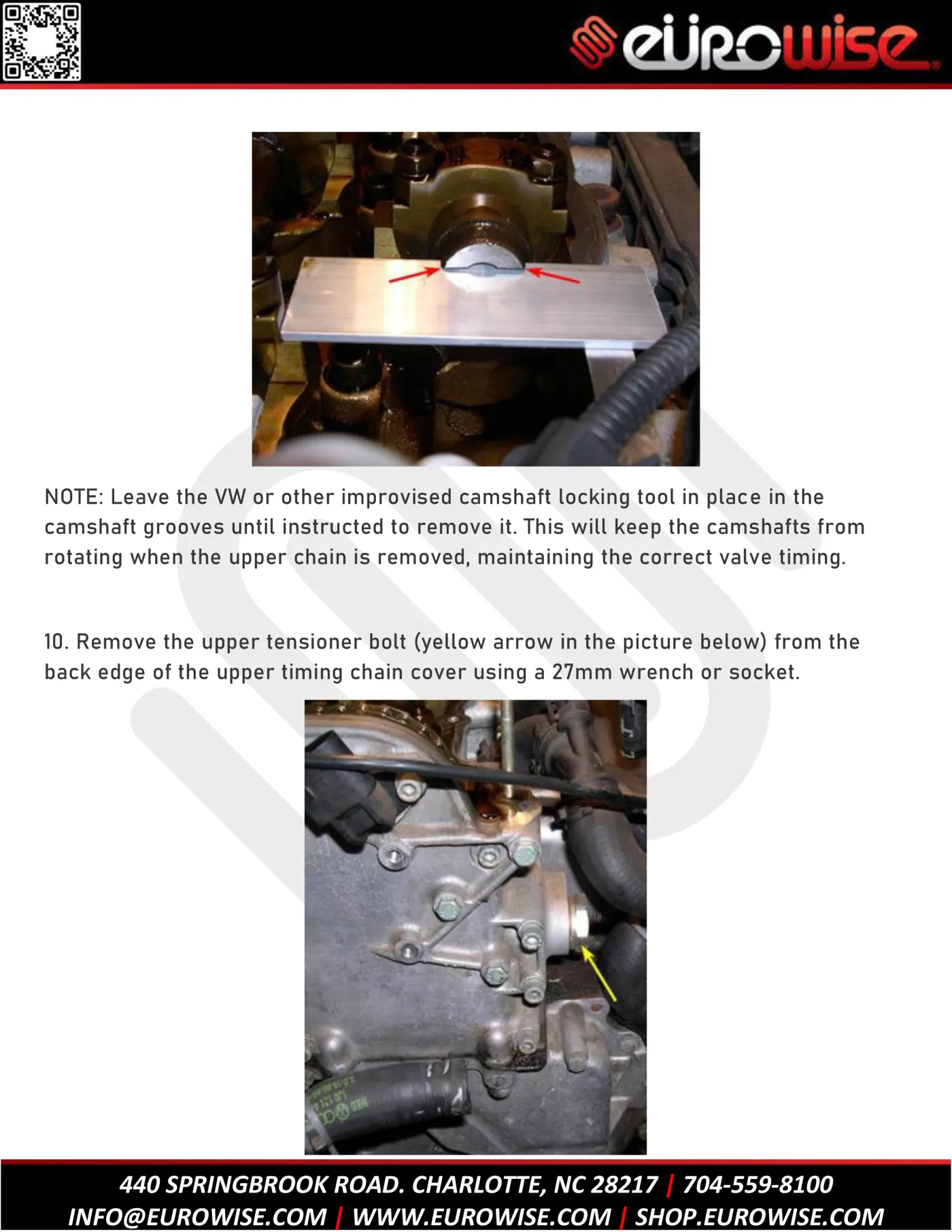

  12. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 12 of 45

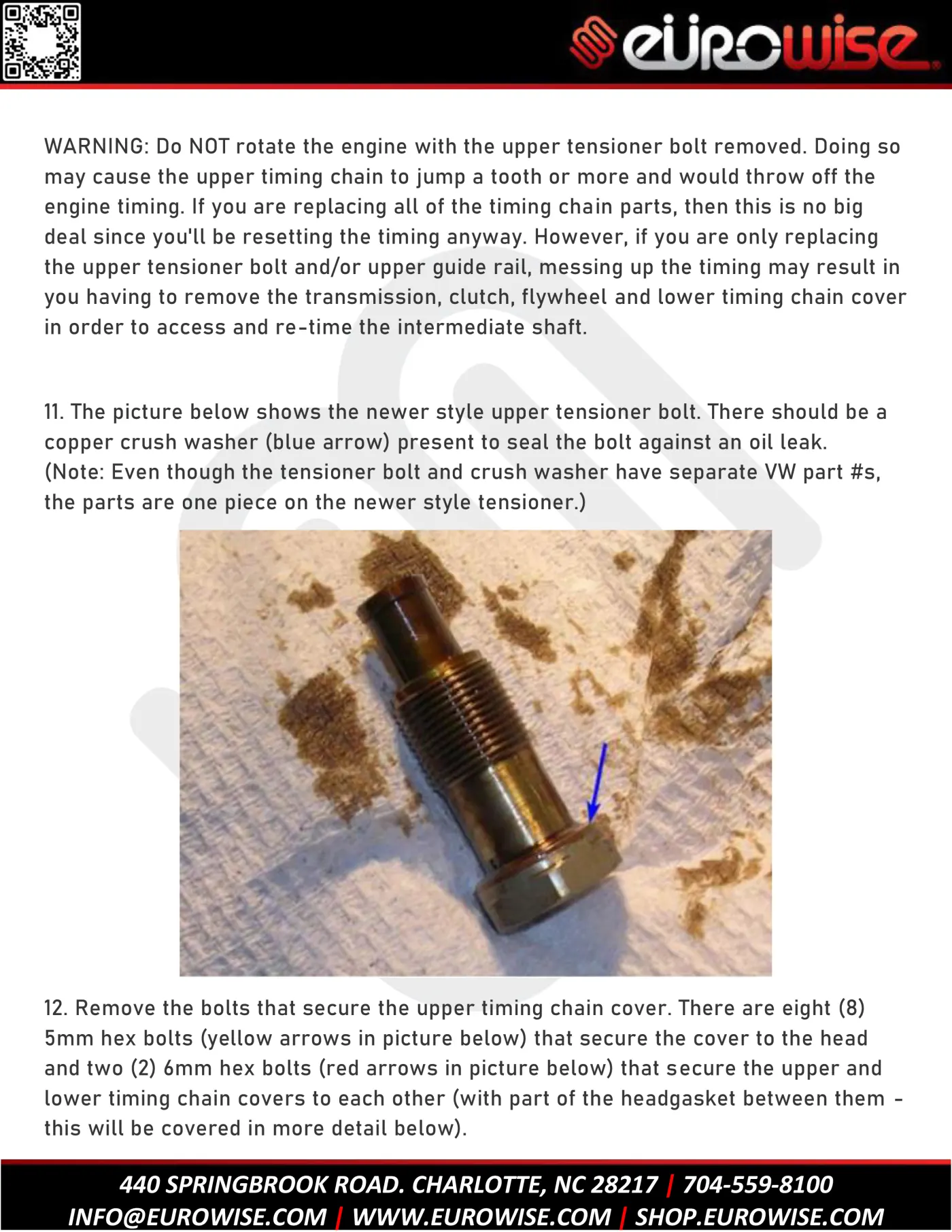

  13. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 13 of 45

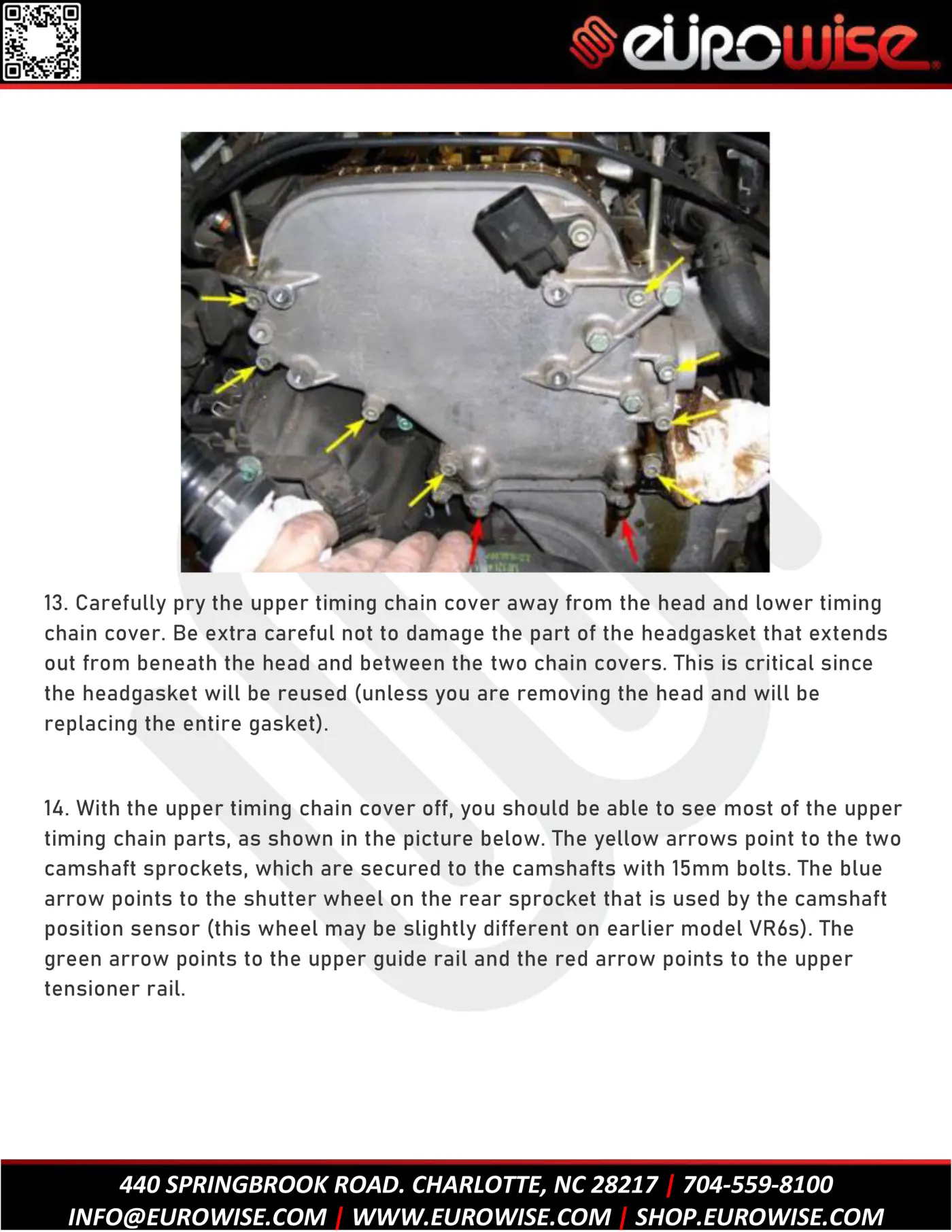

  14. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 14 of 45

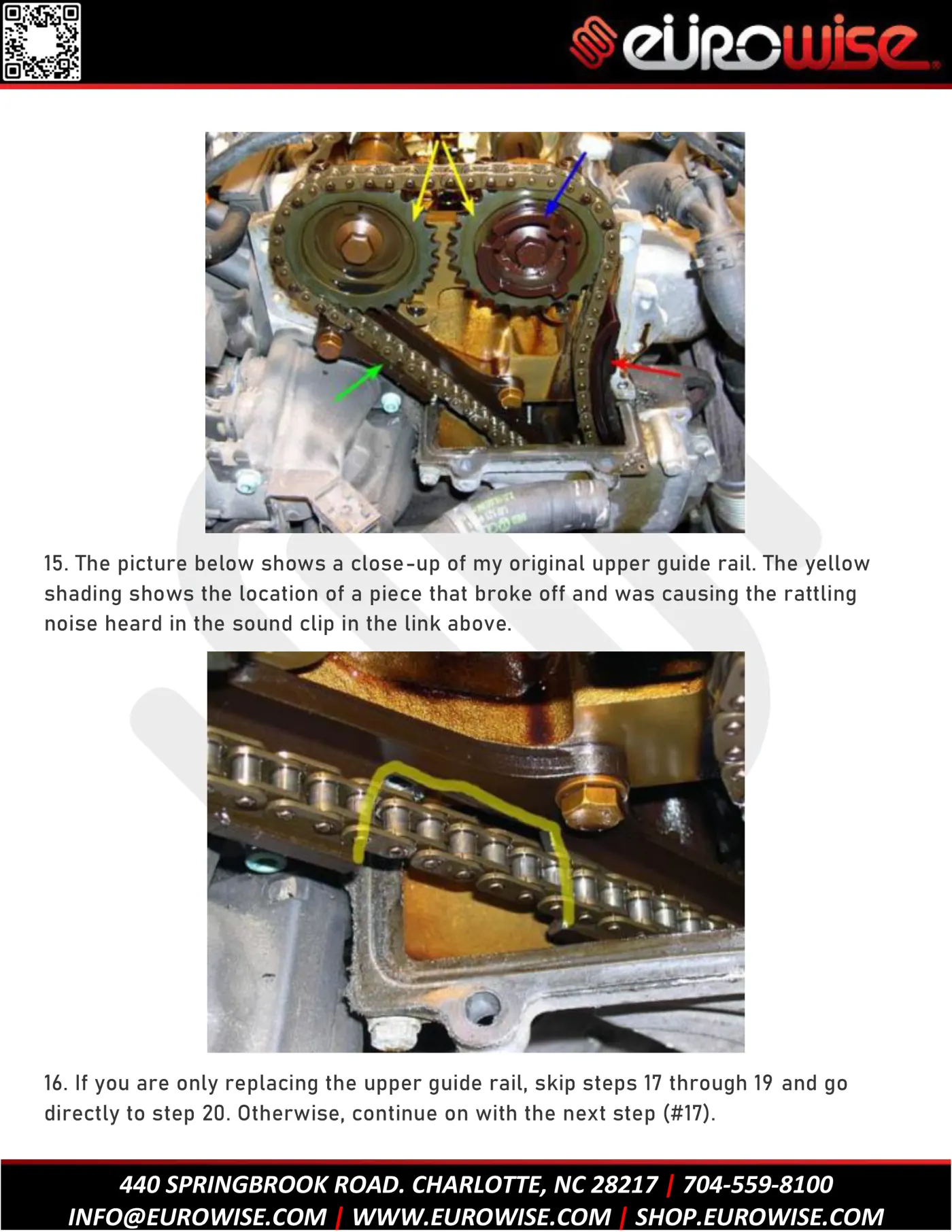

  15. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 15 of 45

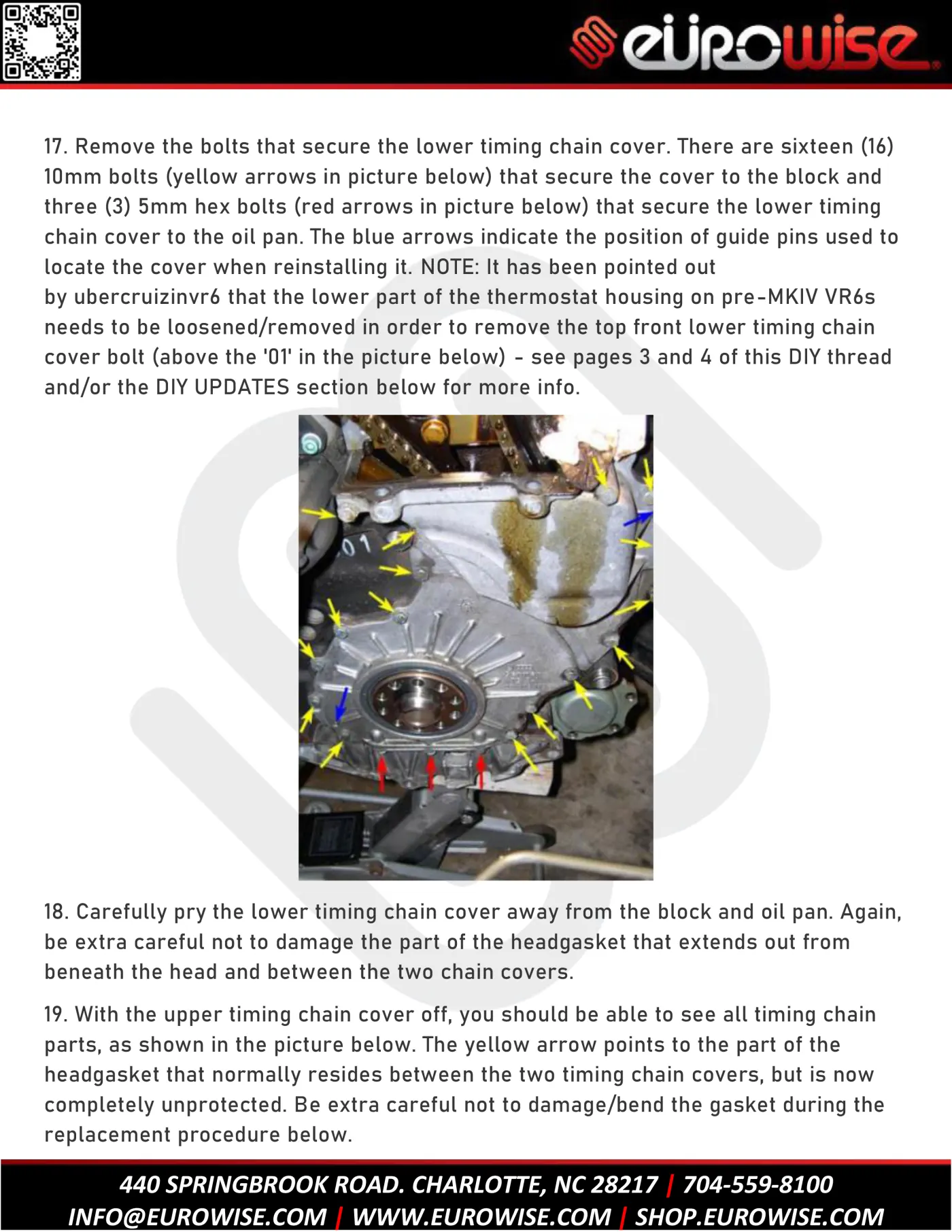

  16. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 16 of 45

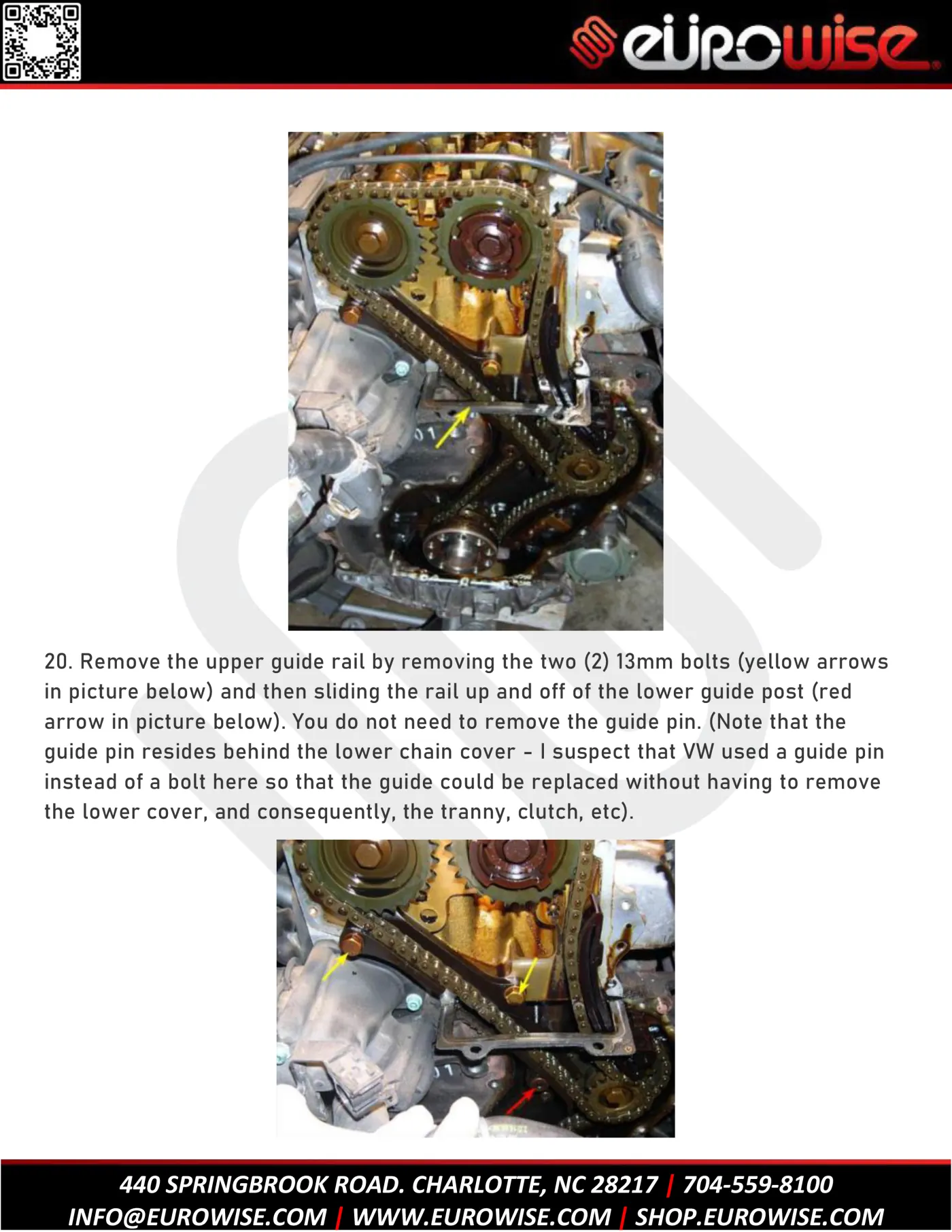

  17. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 17 of 45

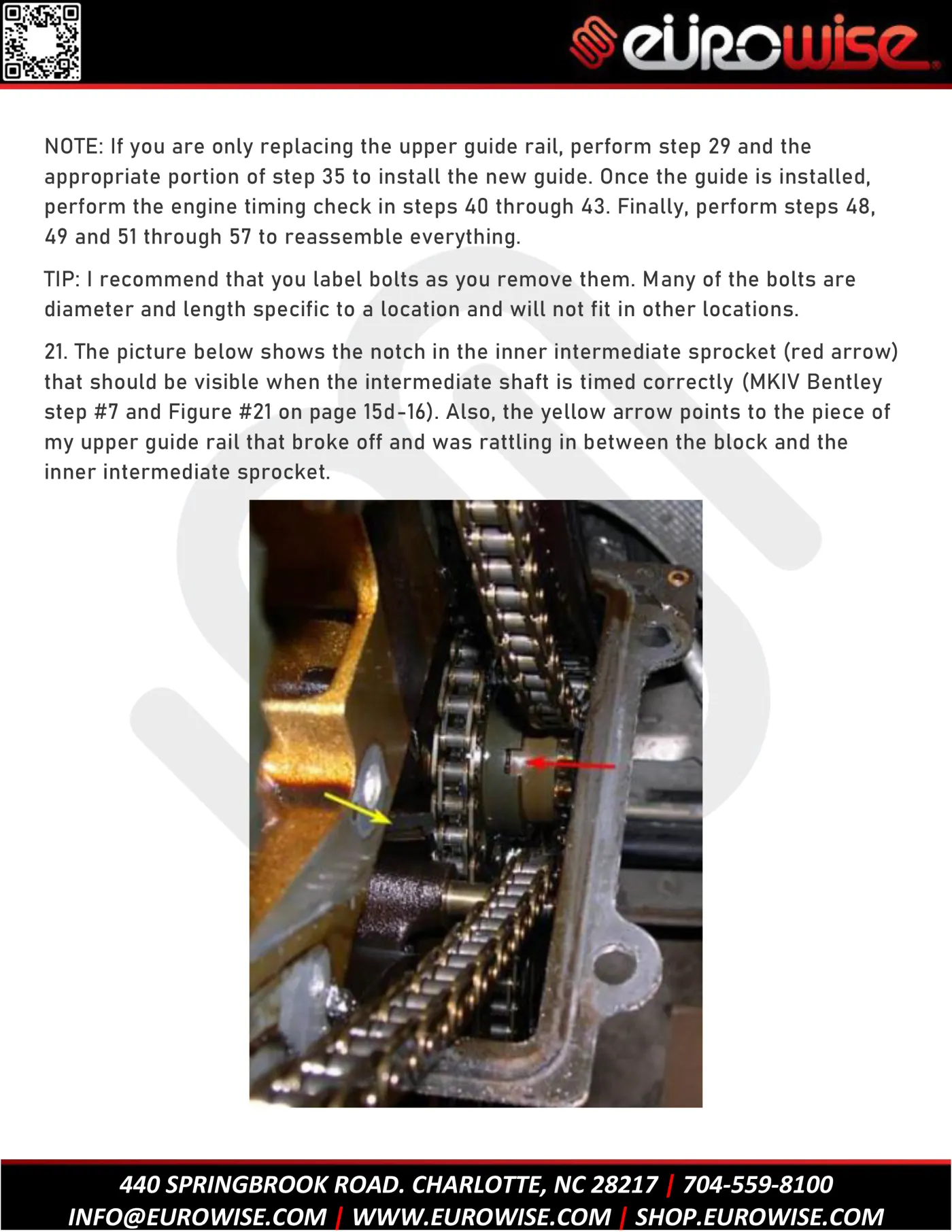

  18. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 18 of 45

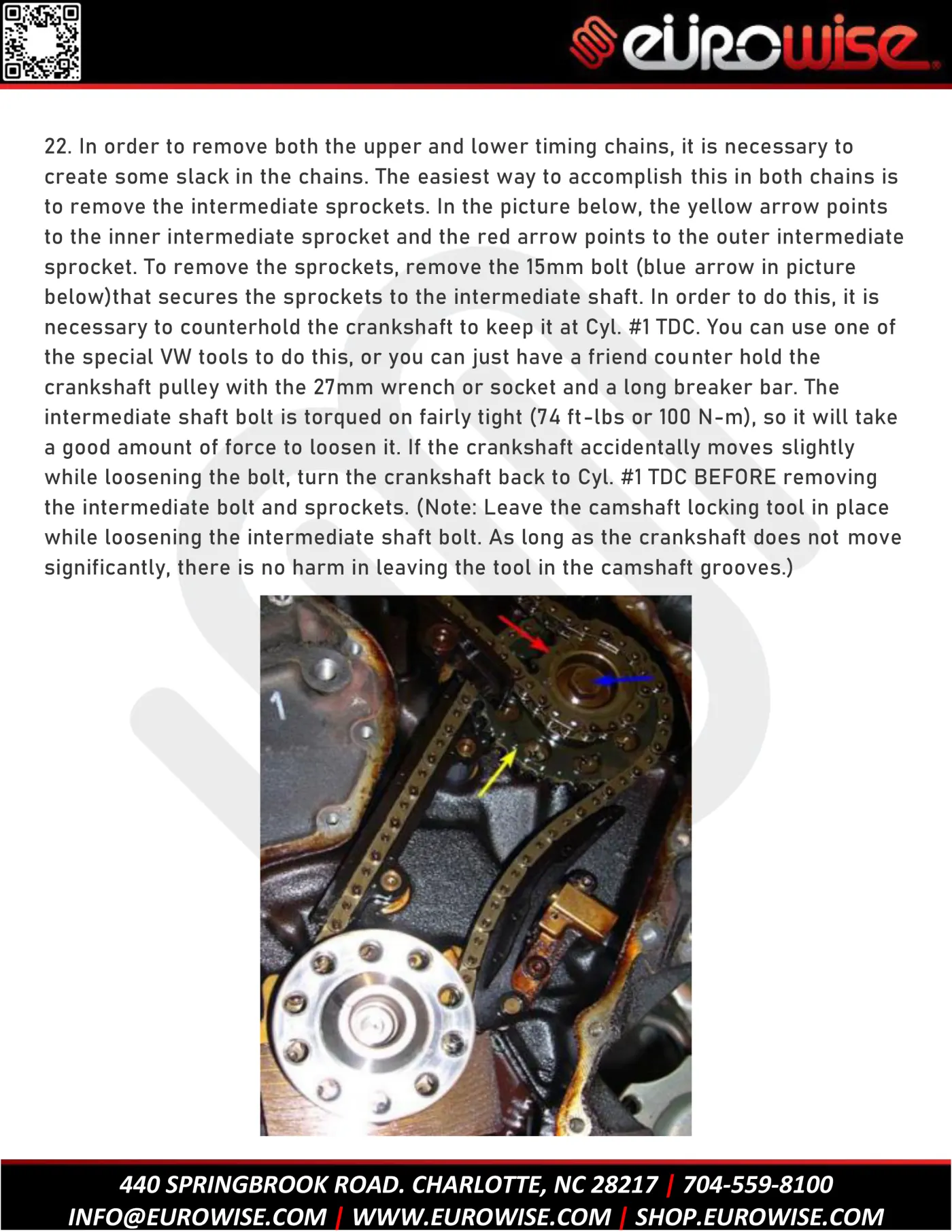

  19. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 19 of 45

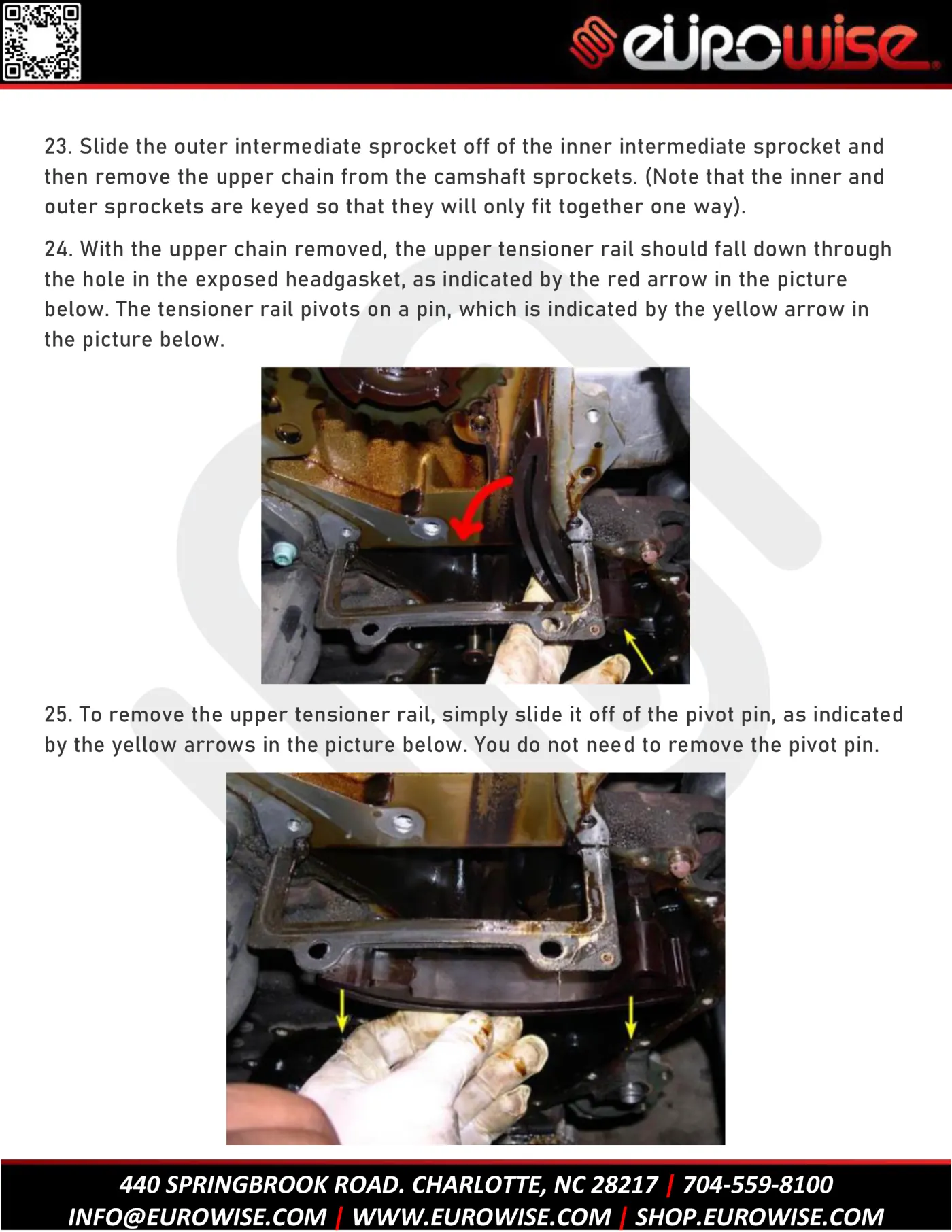

  20. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 20 of 45

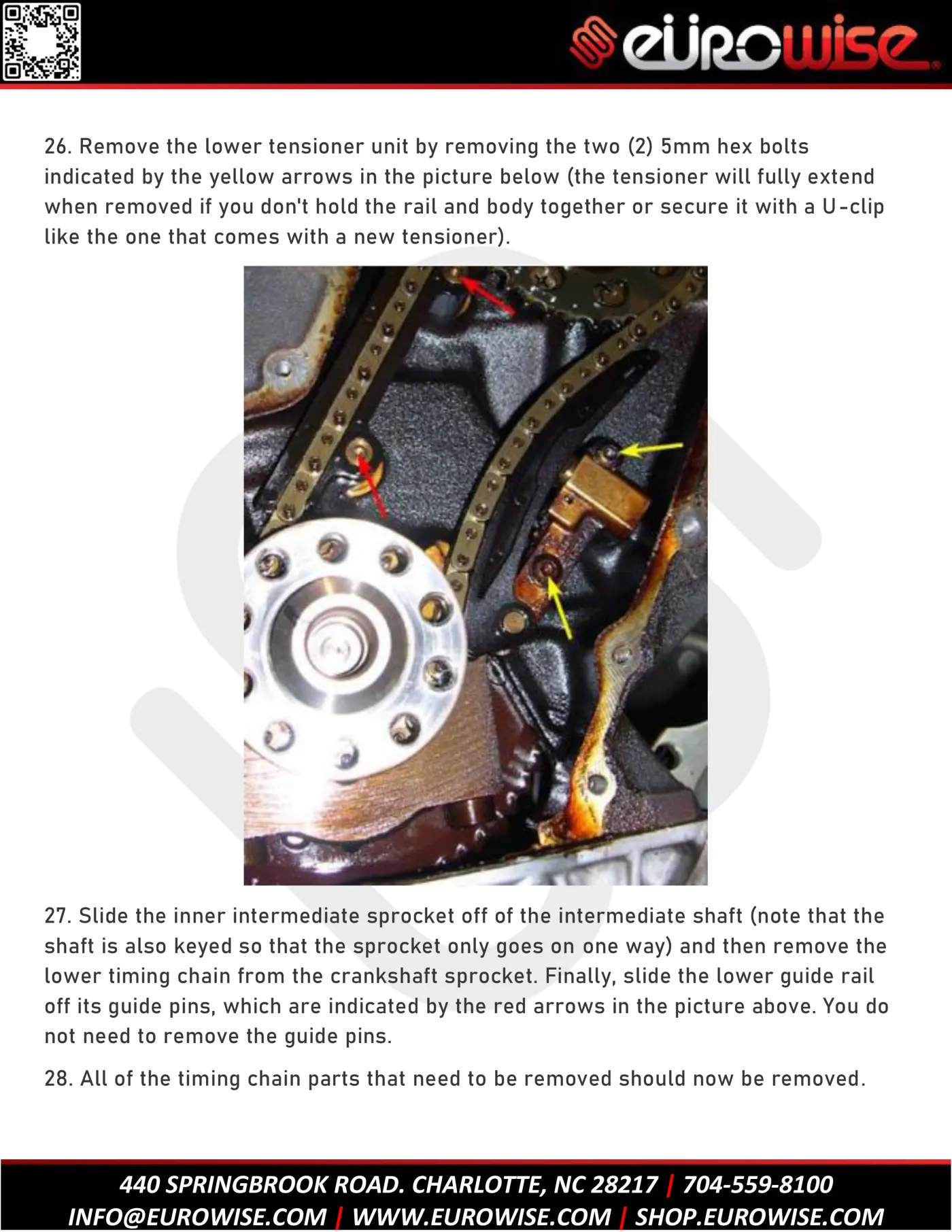

  21. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 21 of 45

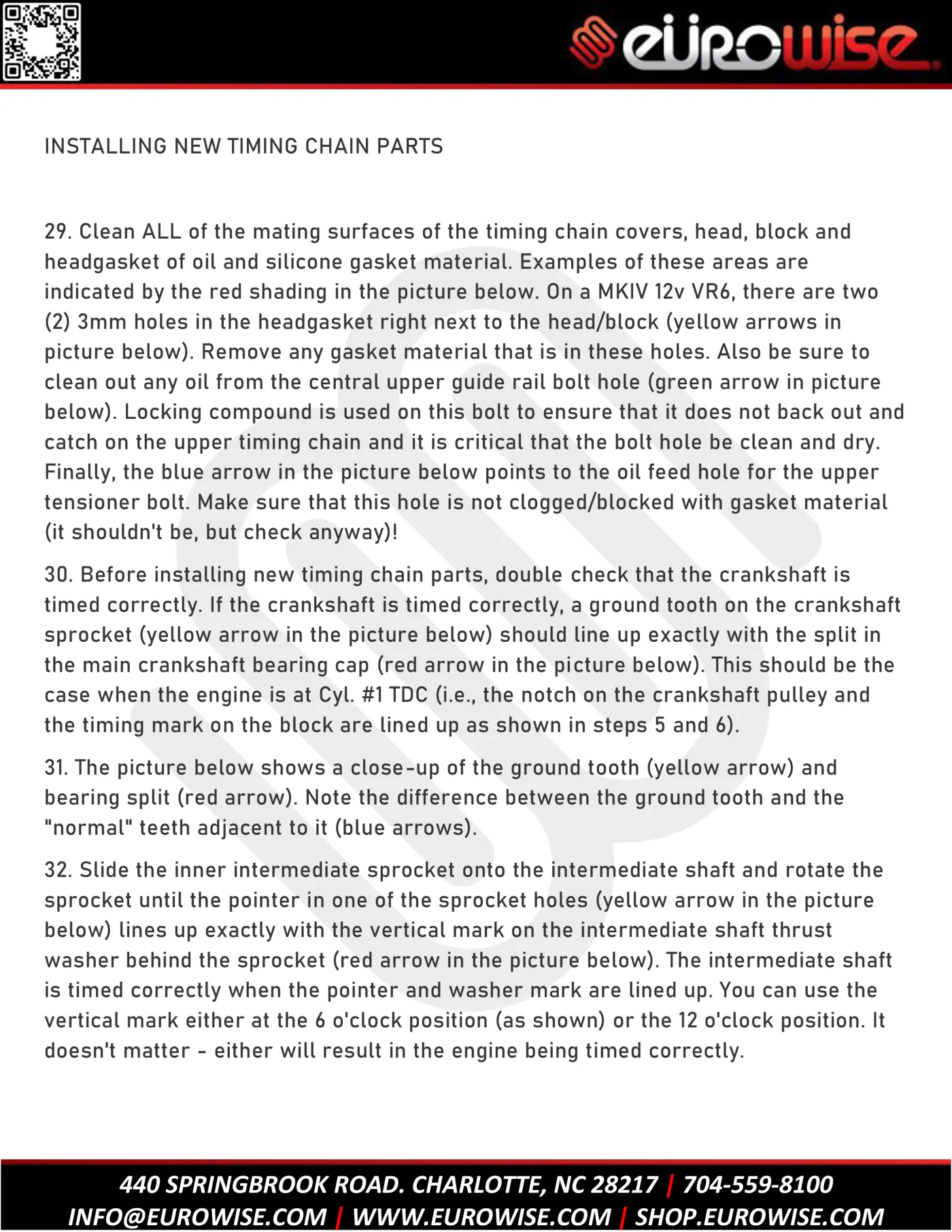

  22. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 22 of 45

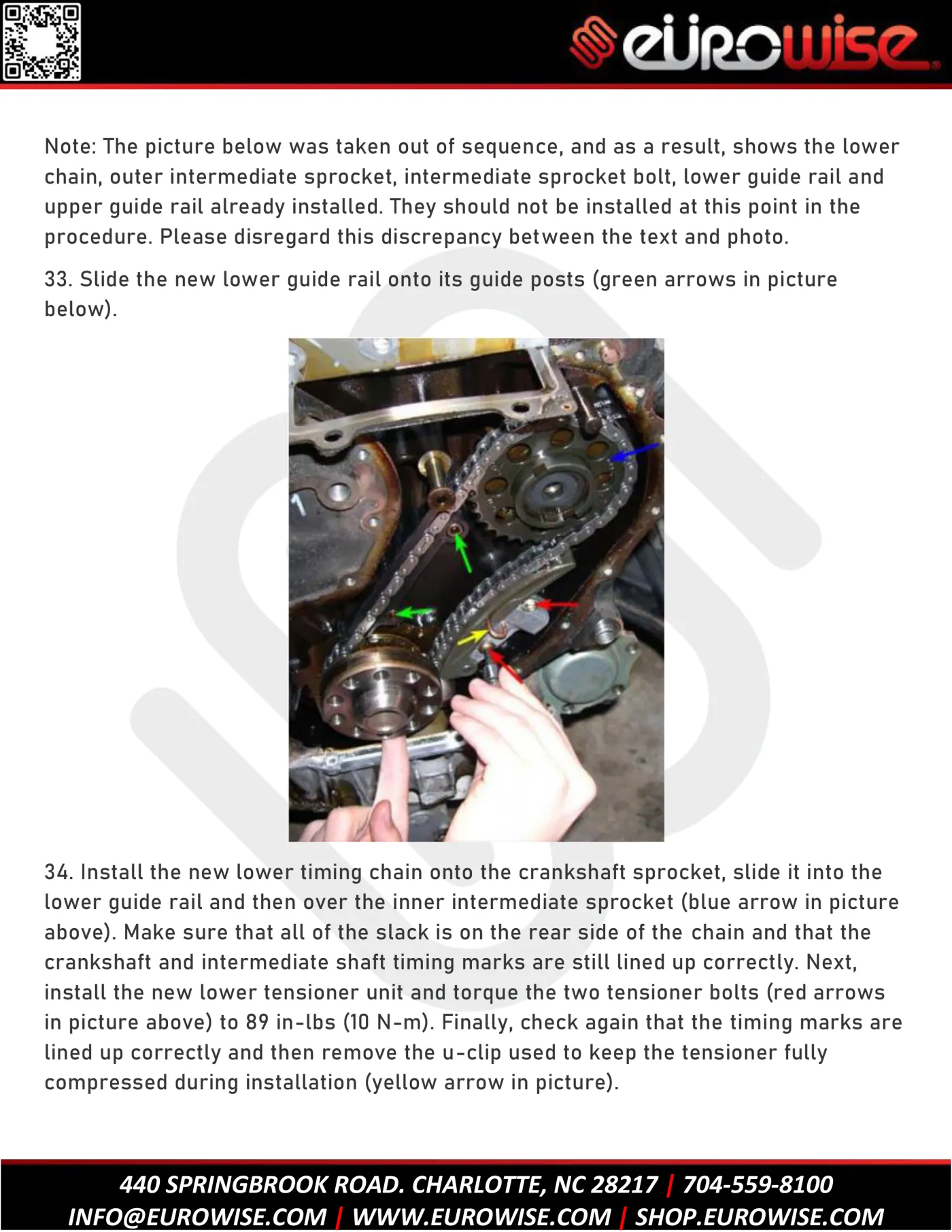

  23. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 23 of 45

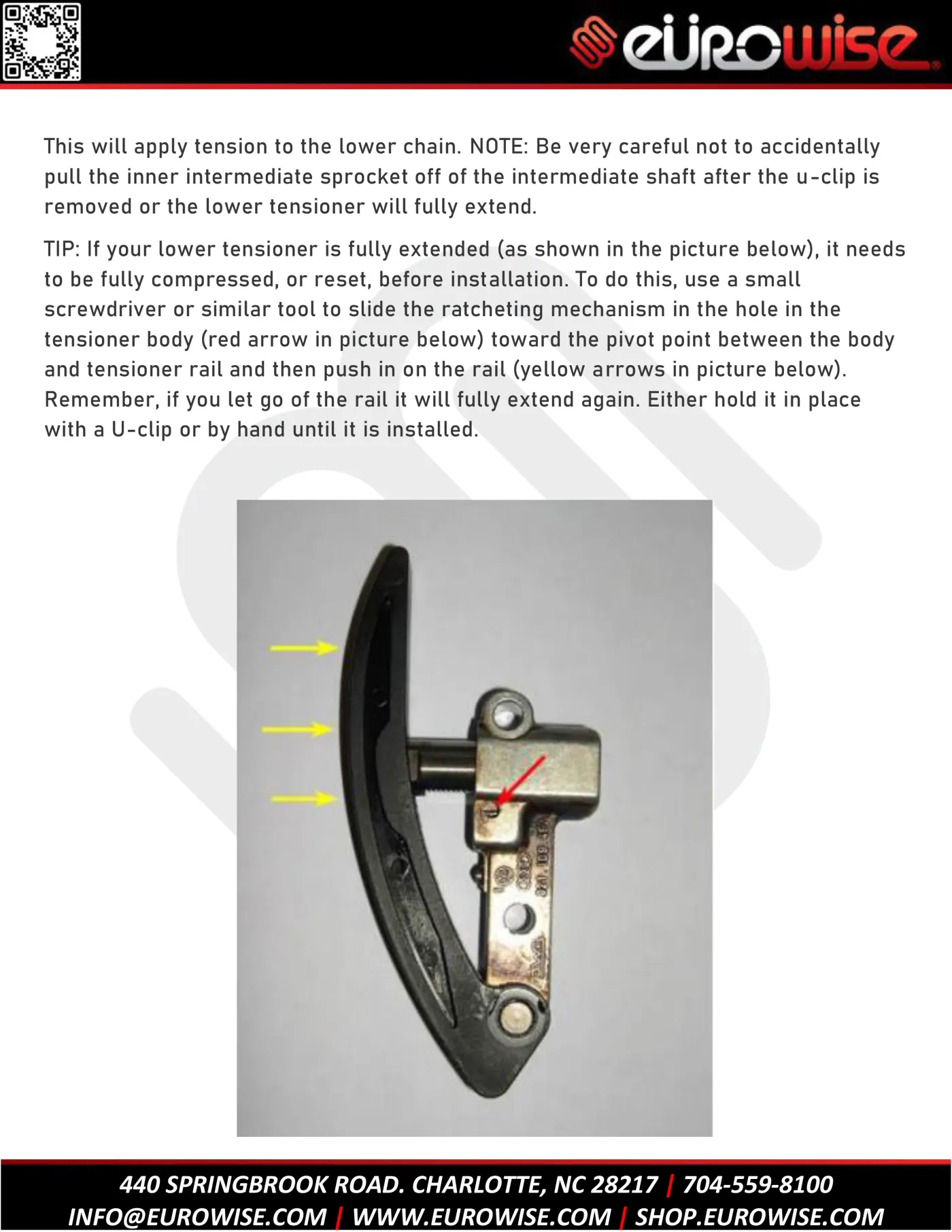

  24. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 24 of 45

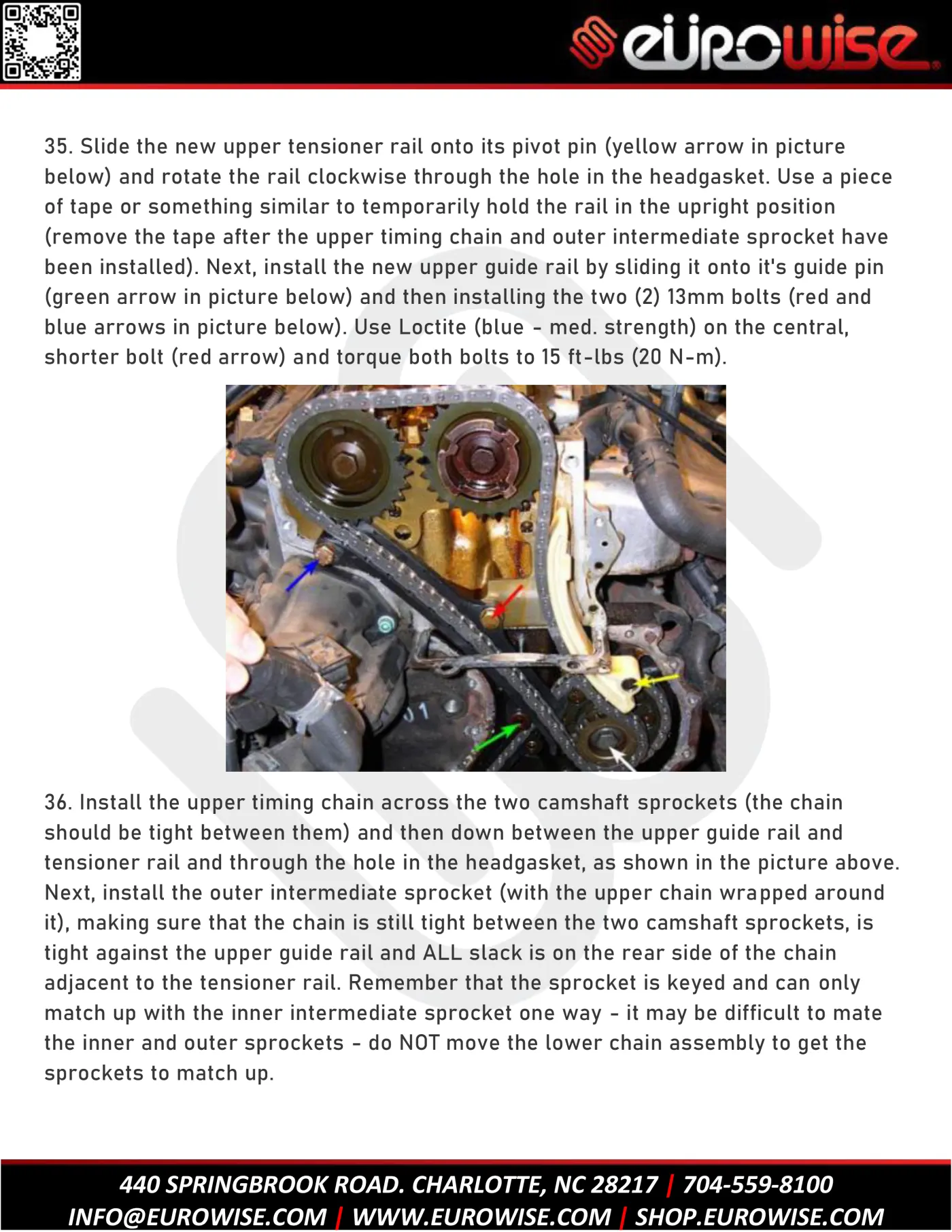

  25. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 25 of 45

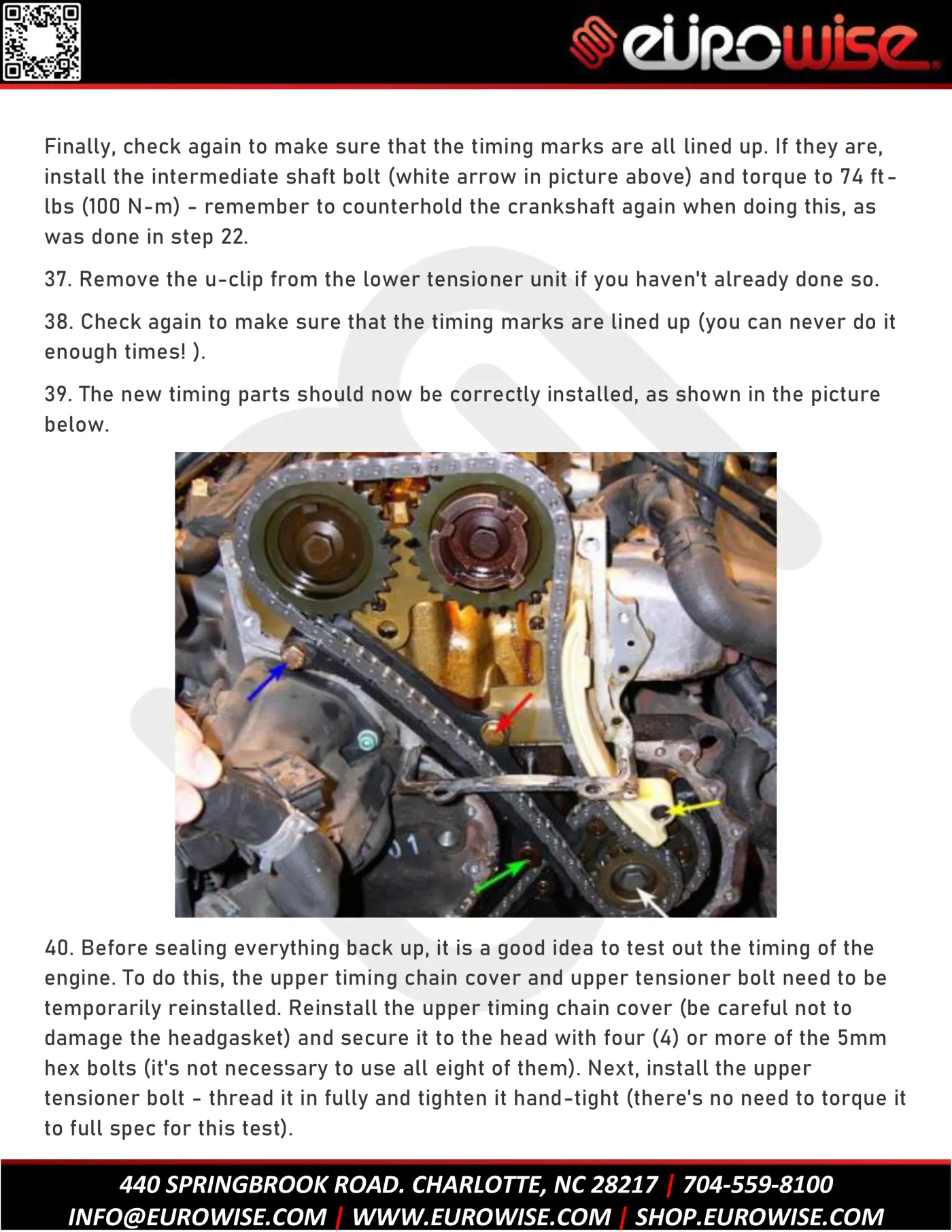

  26. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 26 of 45

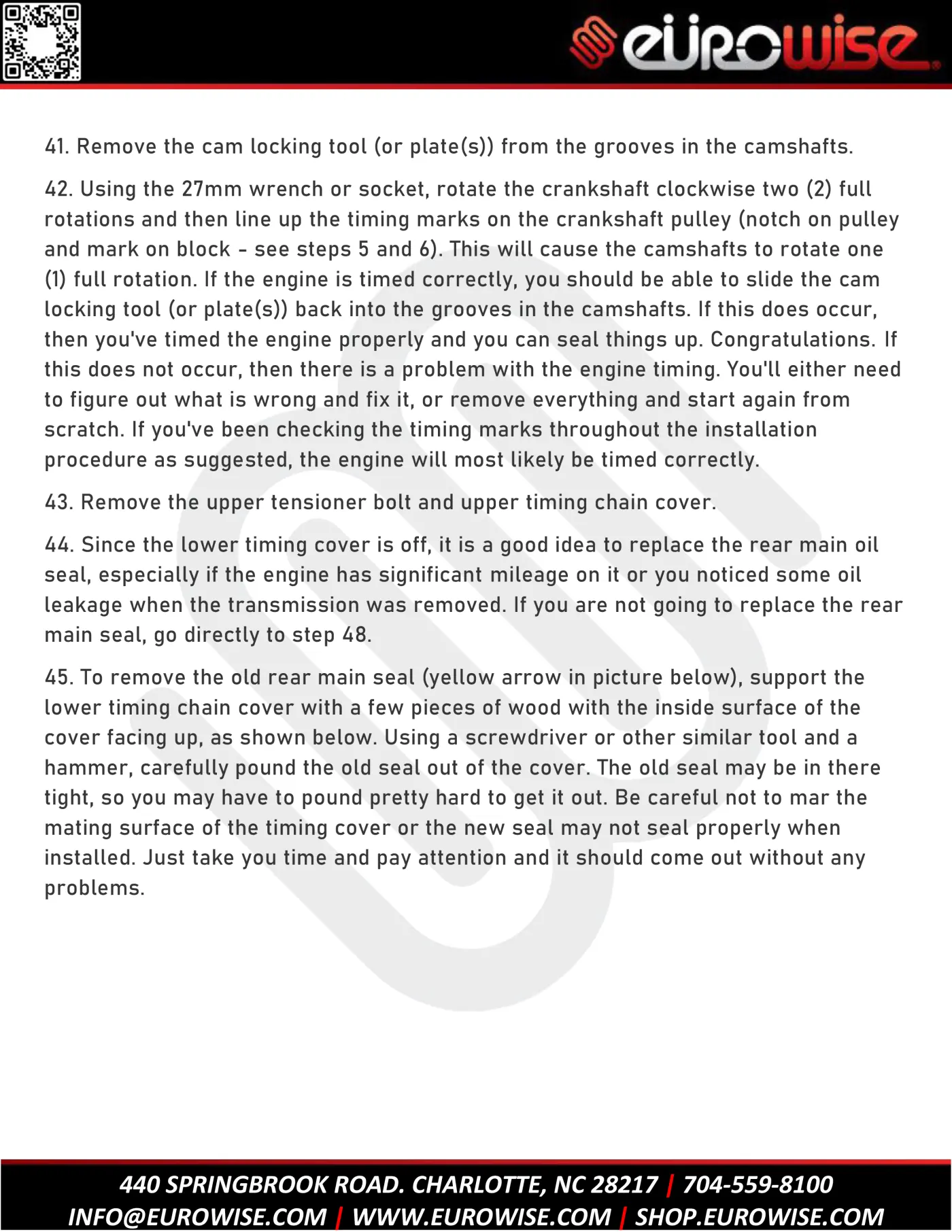

  27. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 27 of 45

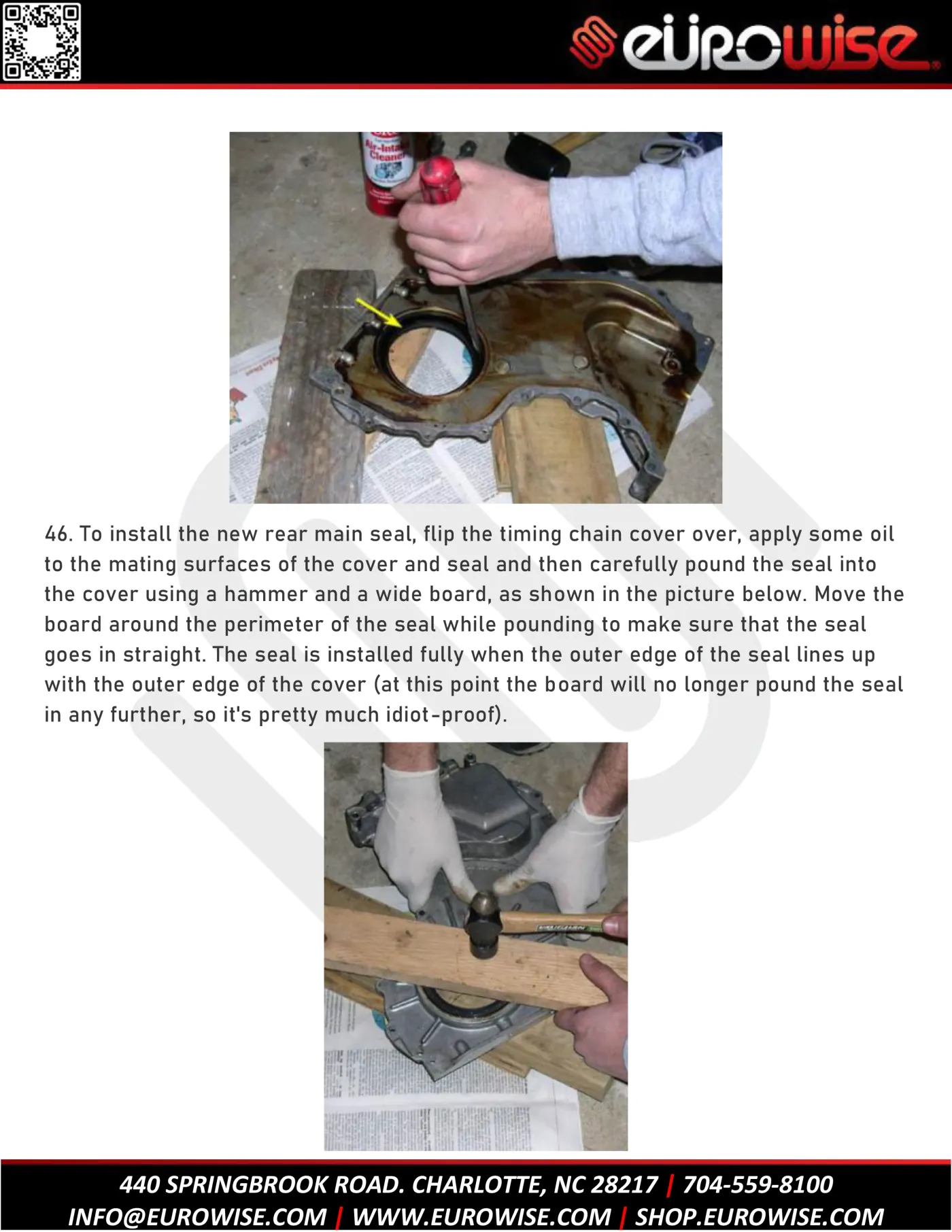

  28. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 28 of 45

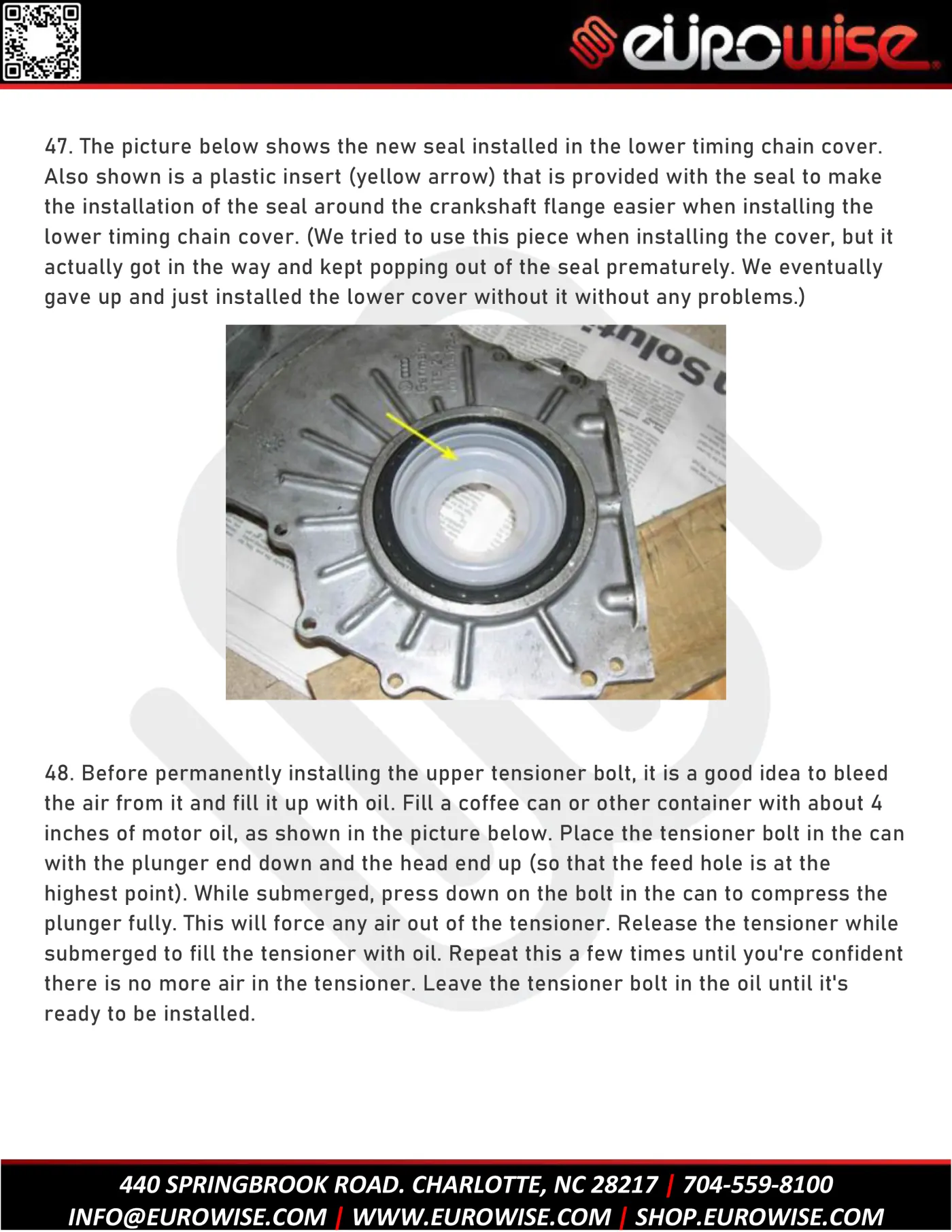

  29. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 29 of 45

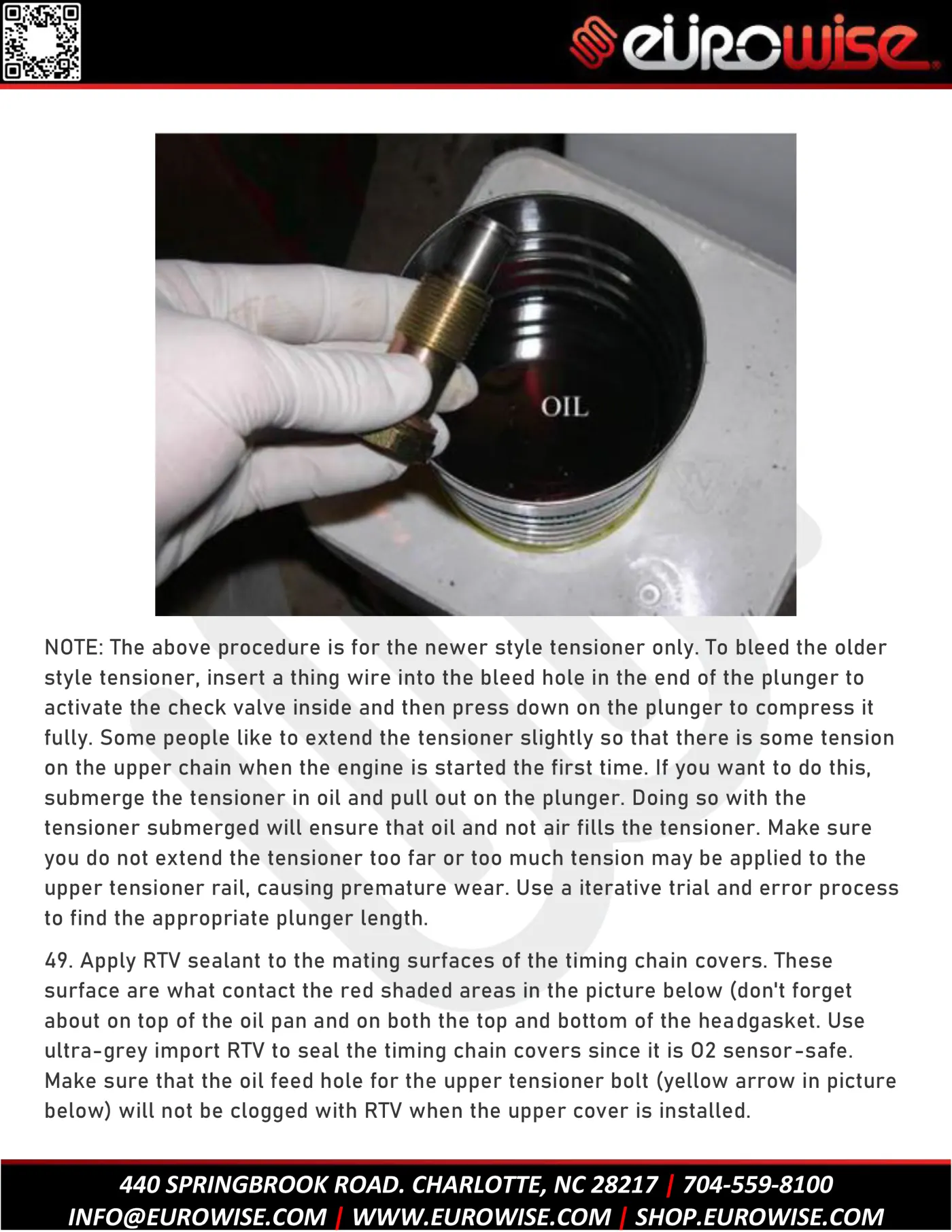

  30. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 30 of 45

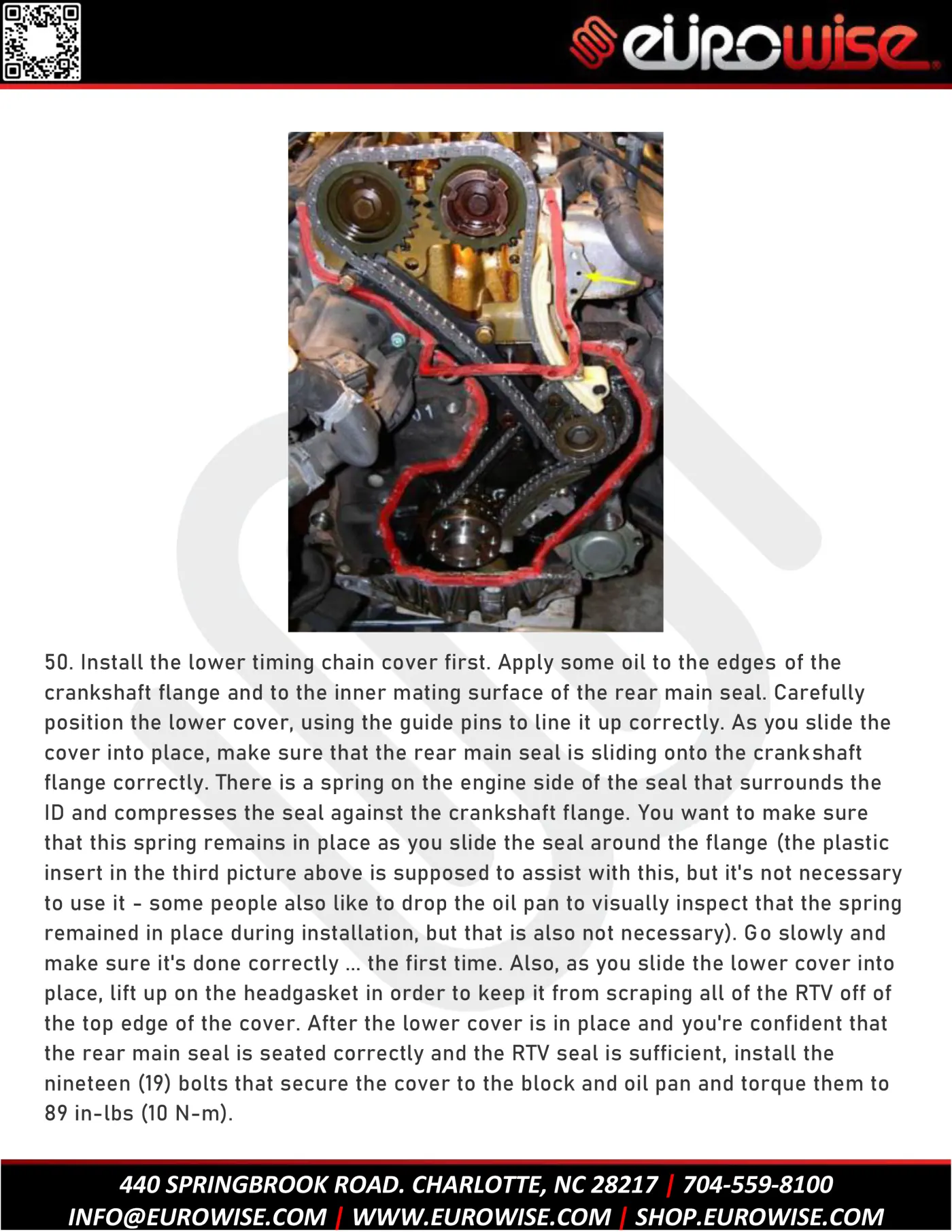

  31. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 31 of 45

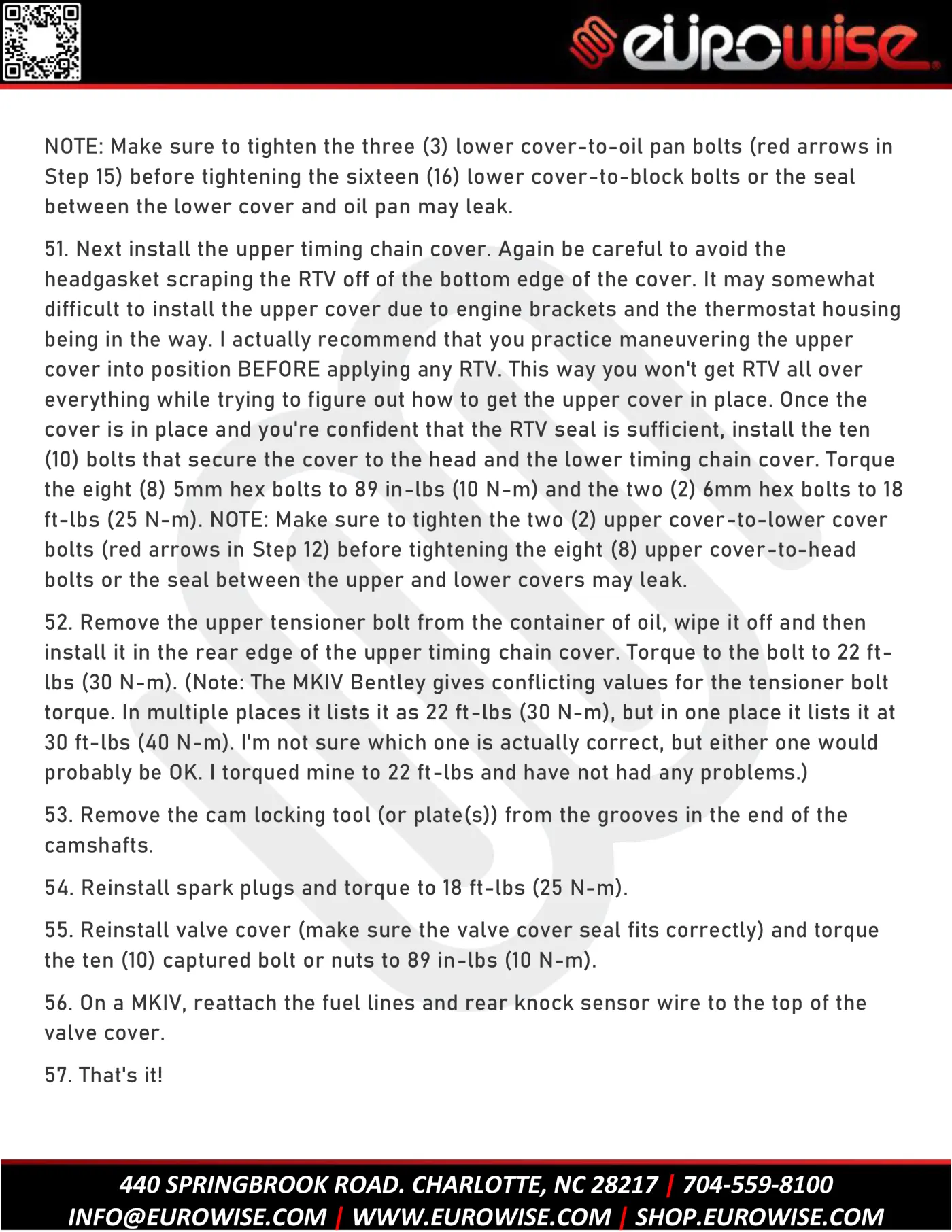

  32. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 32 of 45

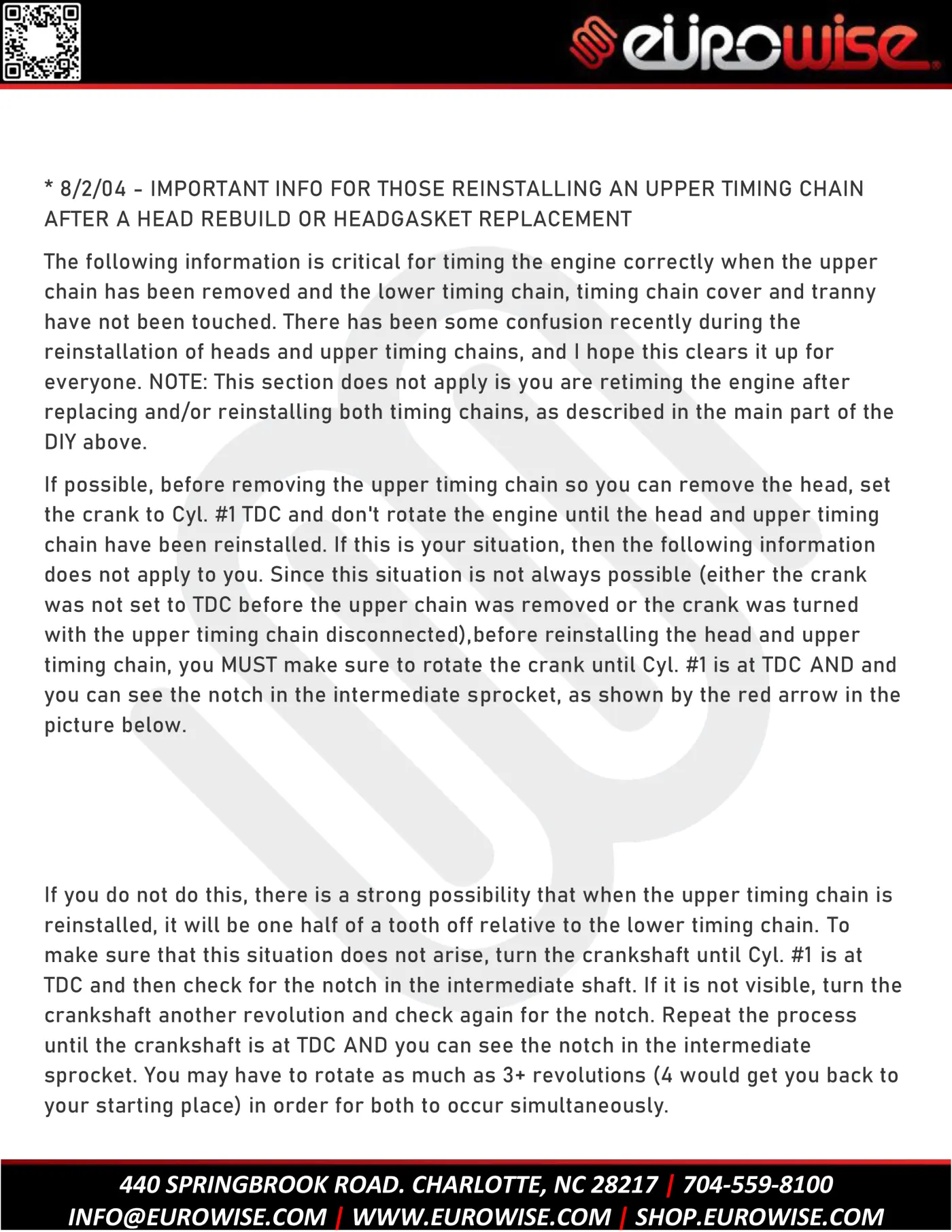

  33. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 33 of 45

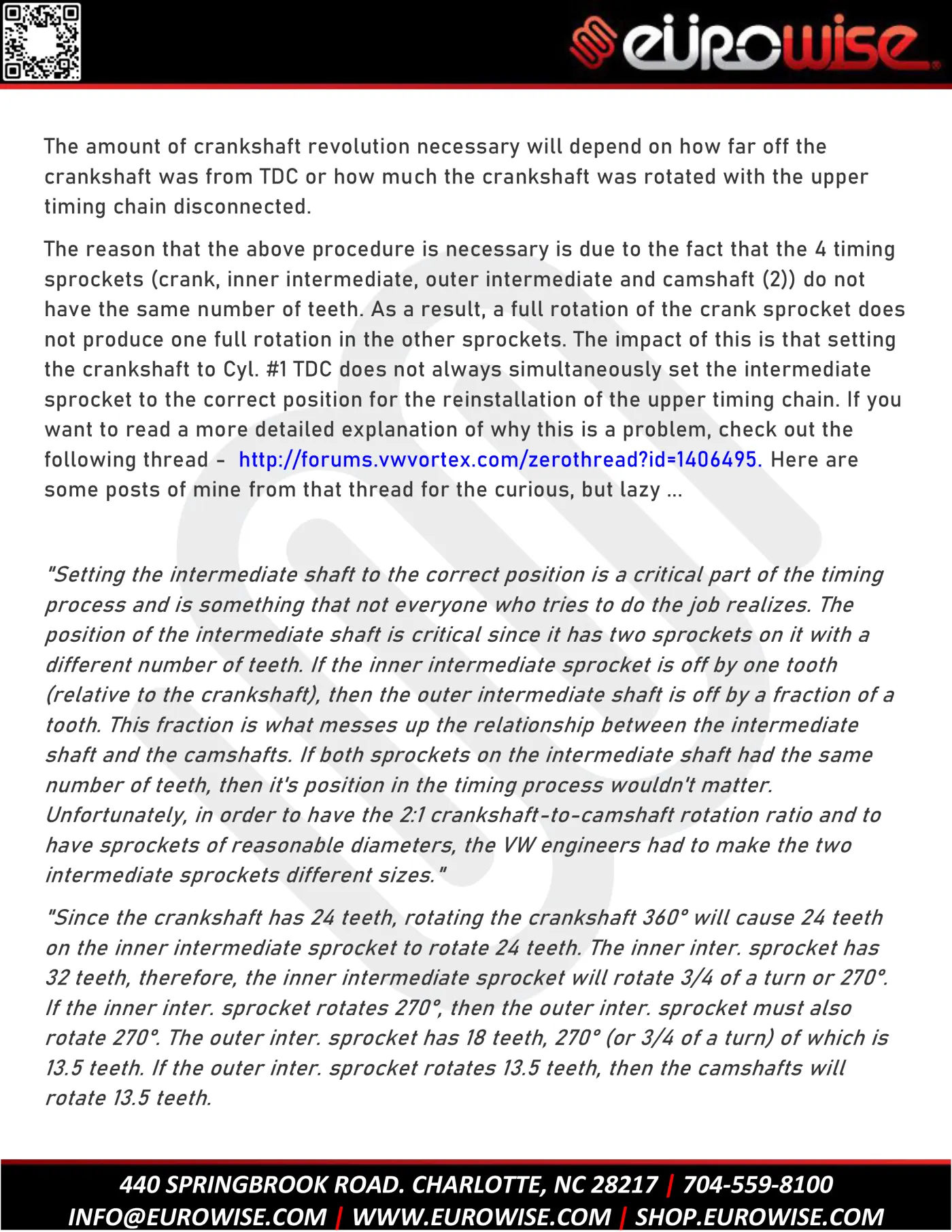

  34. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 34 of 45

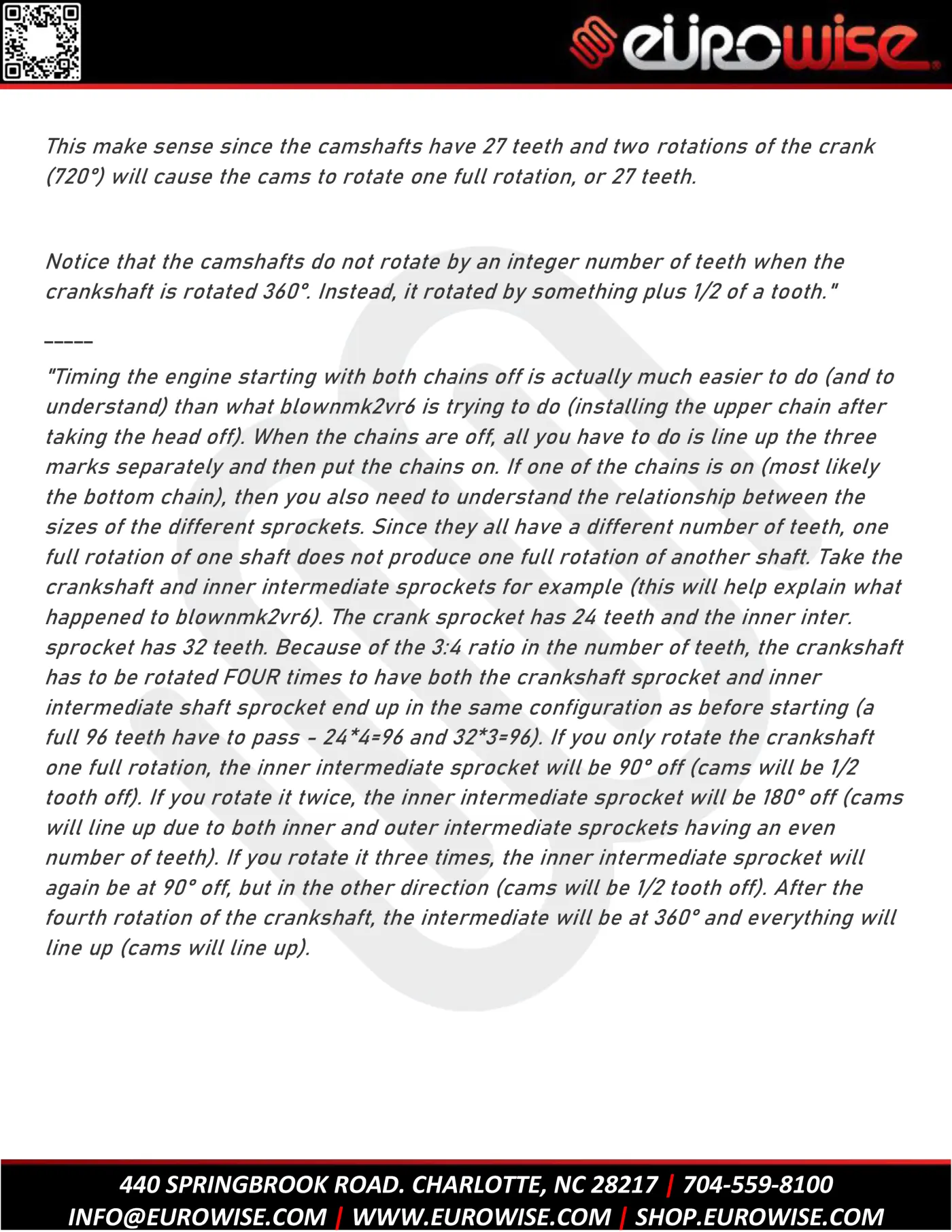

  35. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 35 of 45

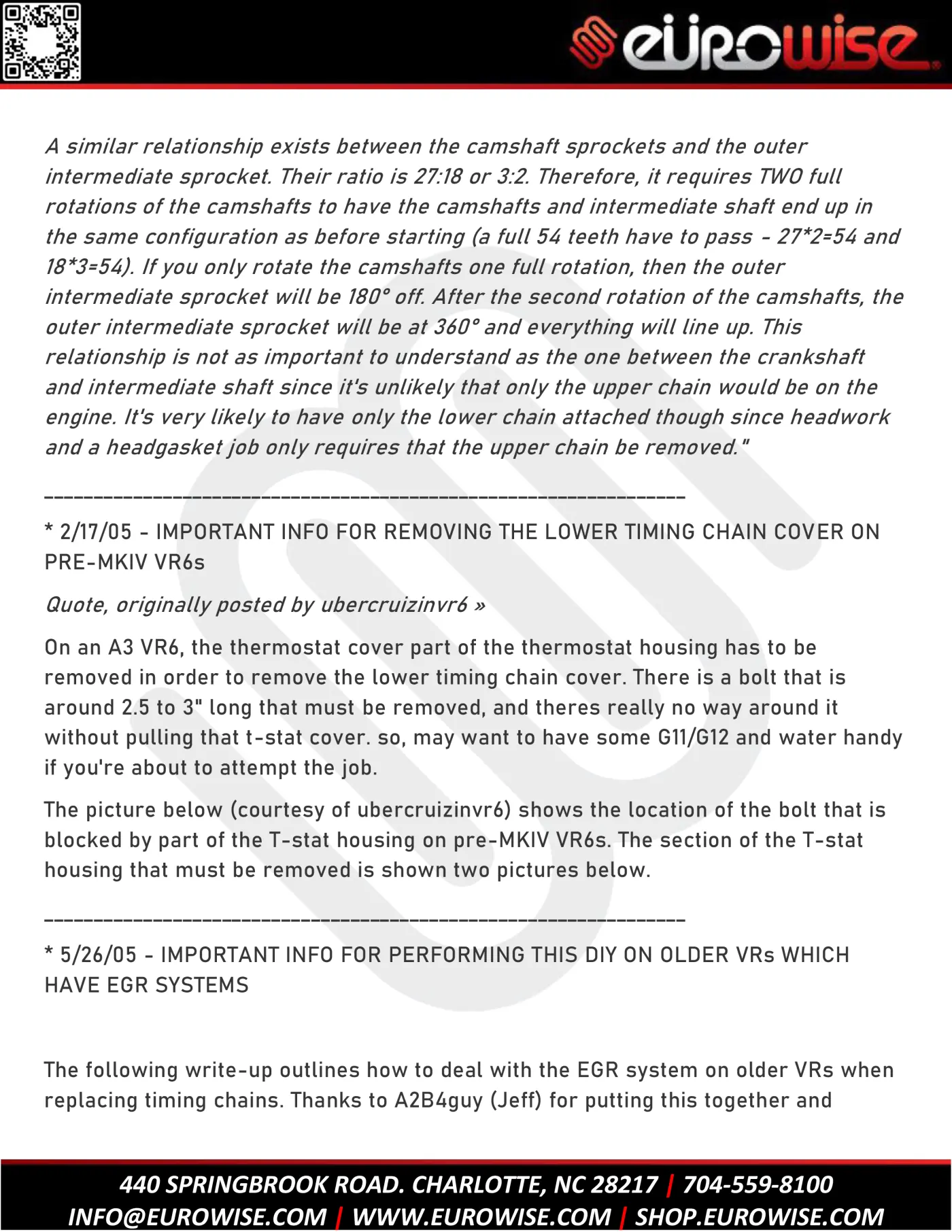

  36. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 36 of 45

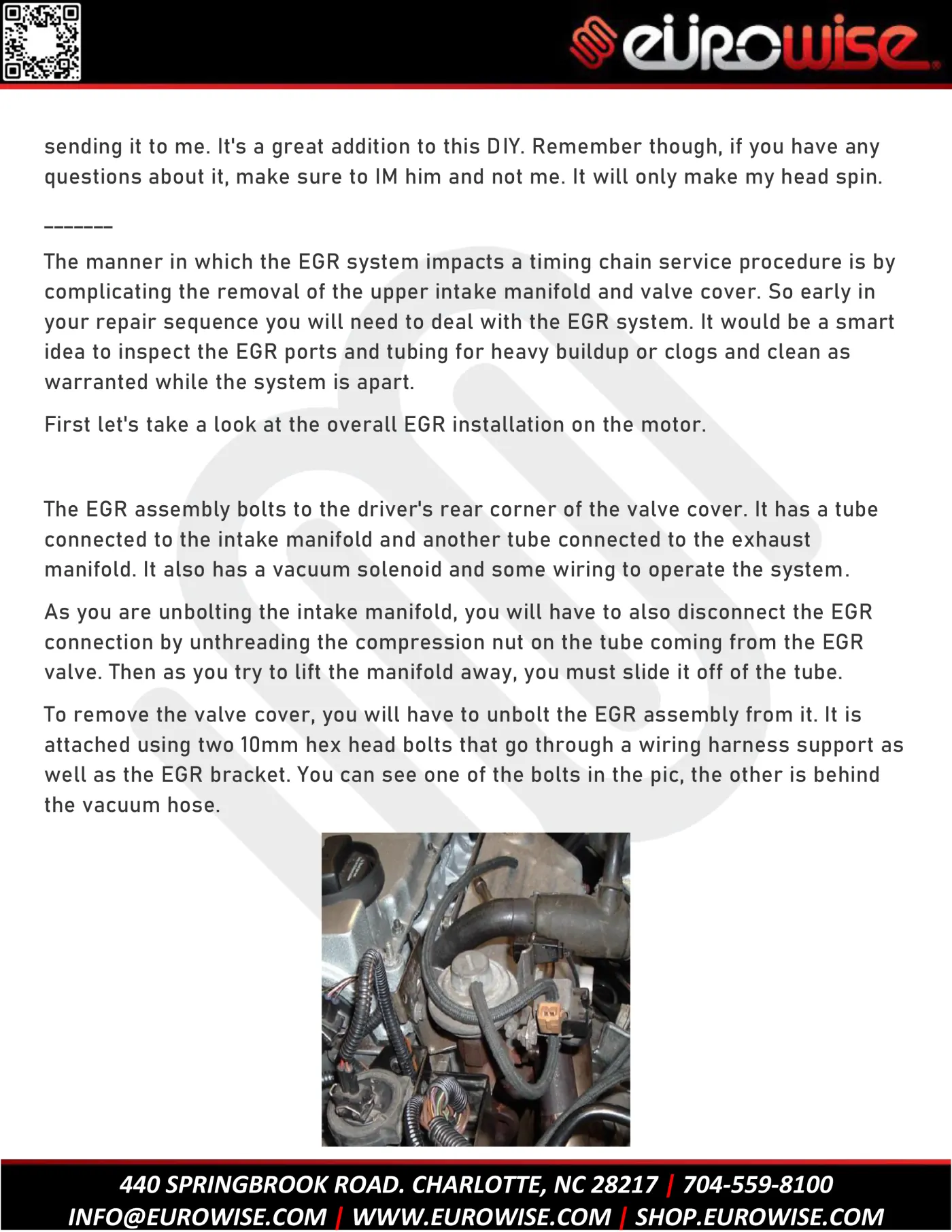

  37. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 37 of 45

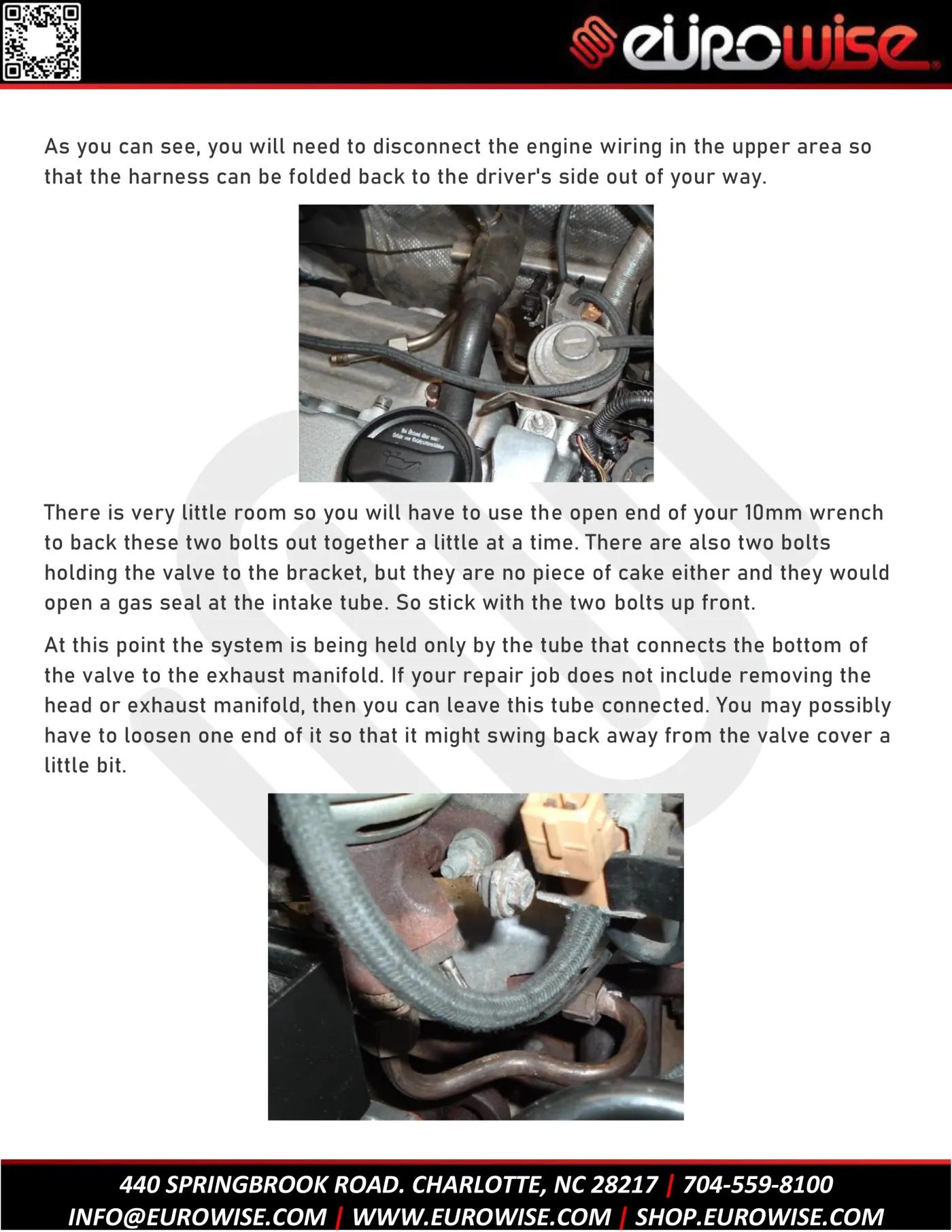

  38. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 38 of 45

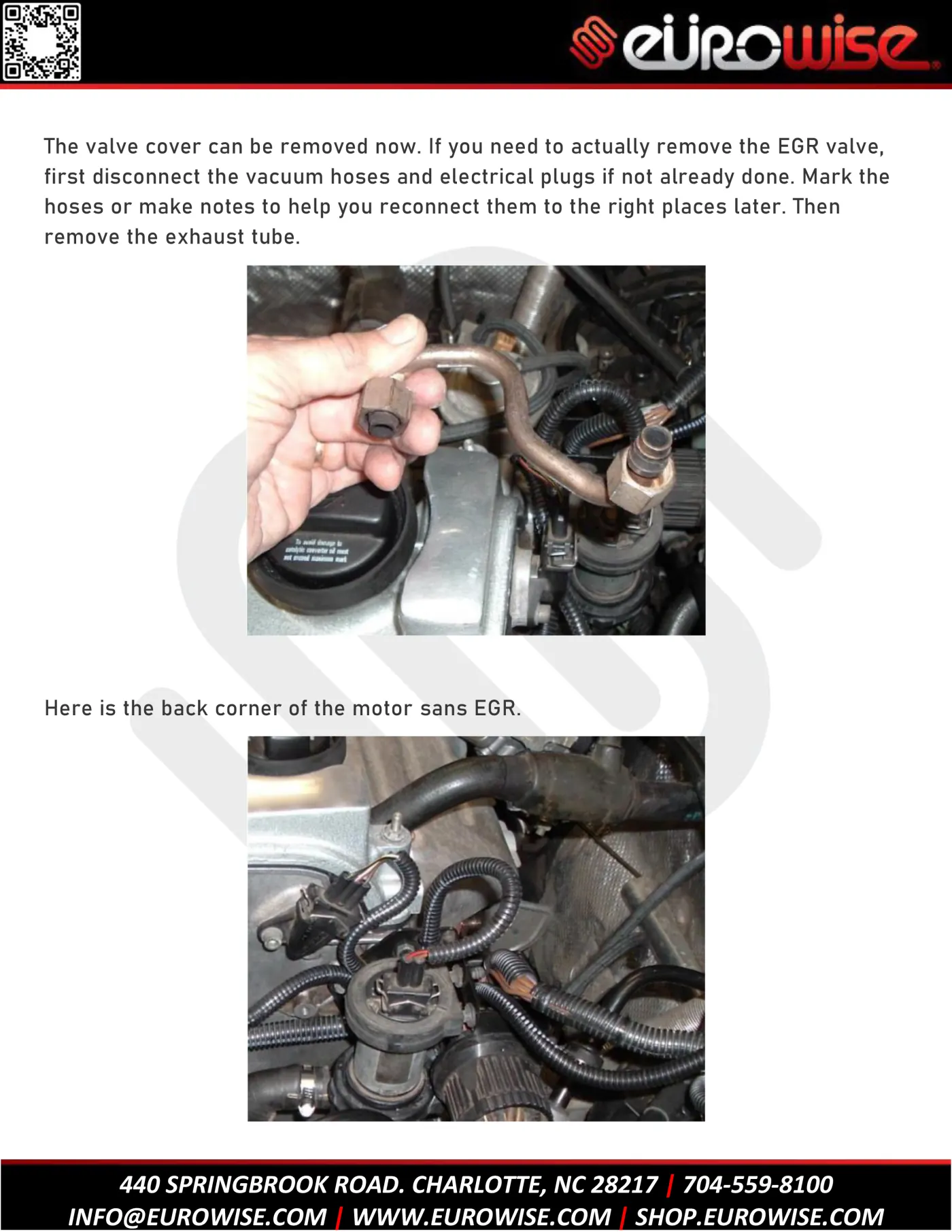

  39. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 39 of 45

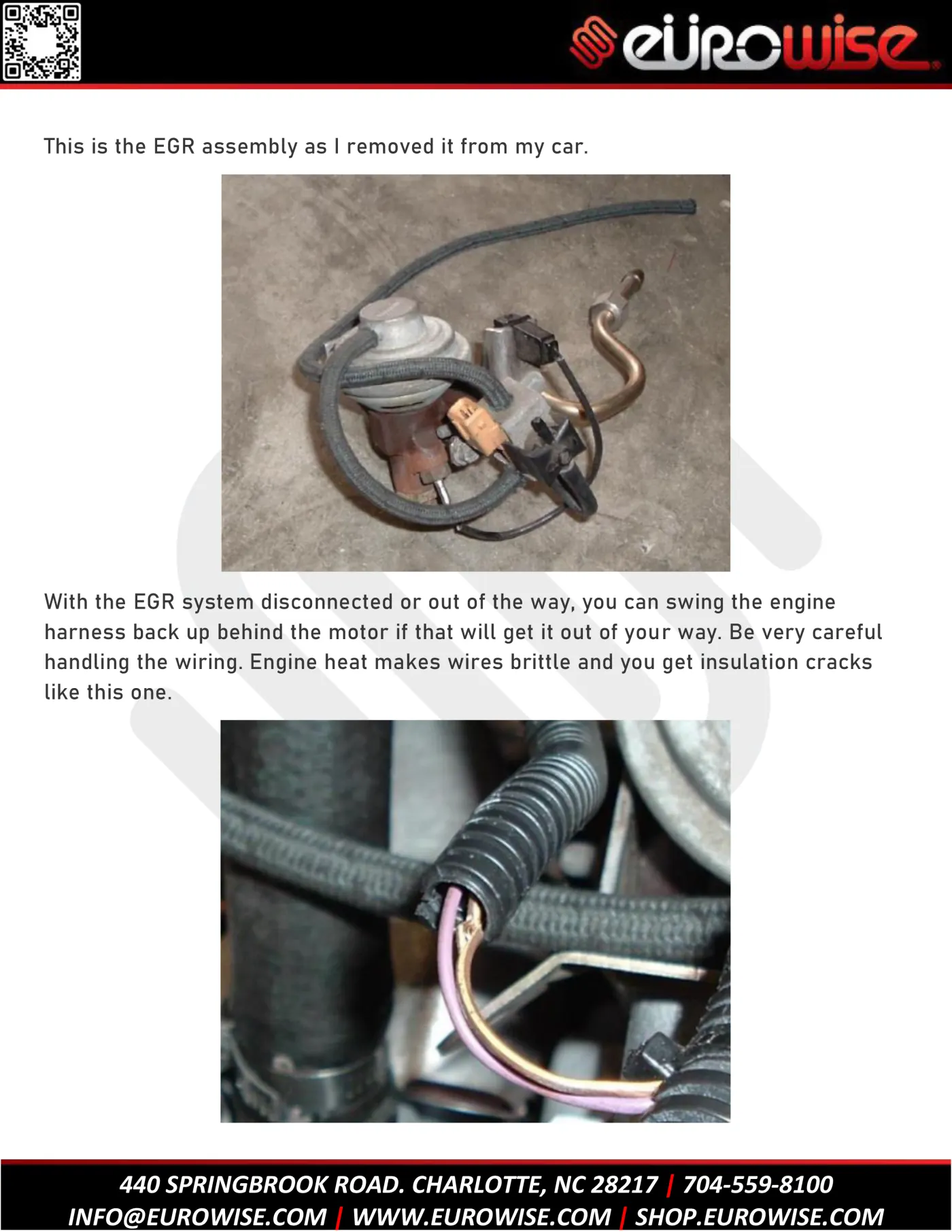

  40. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 40 of 45

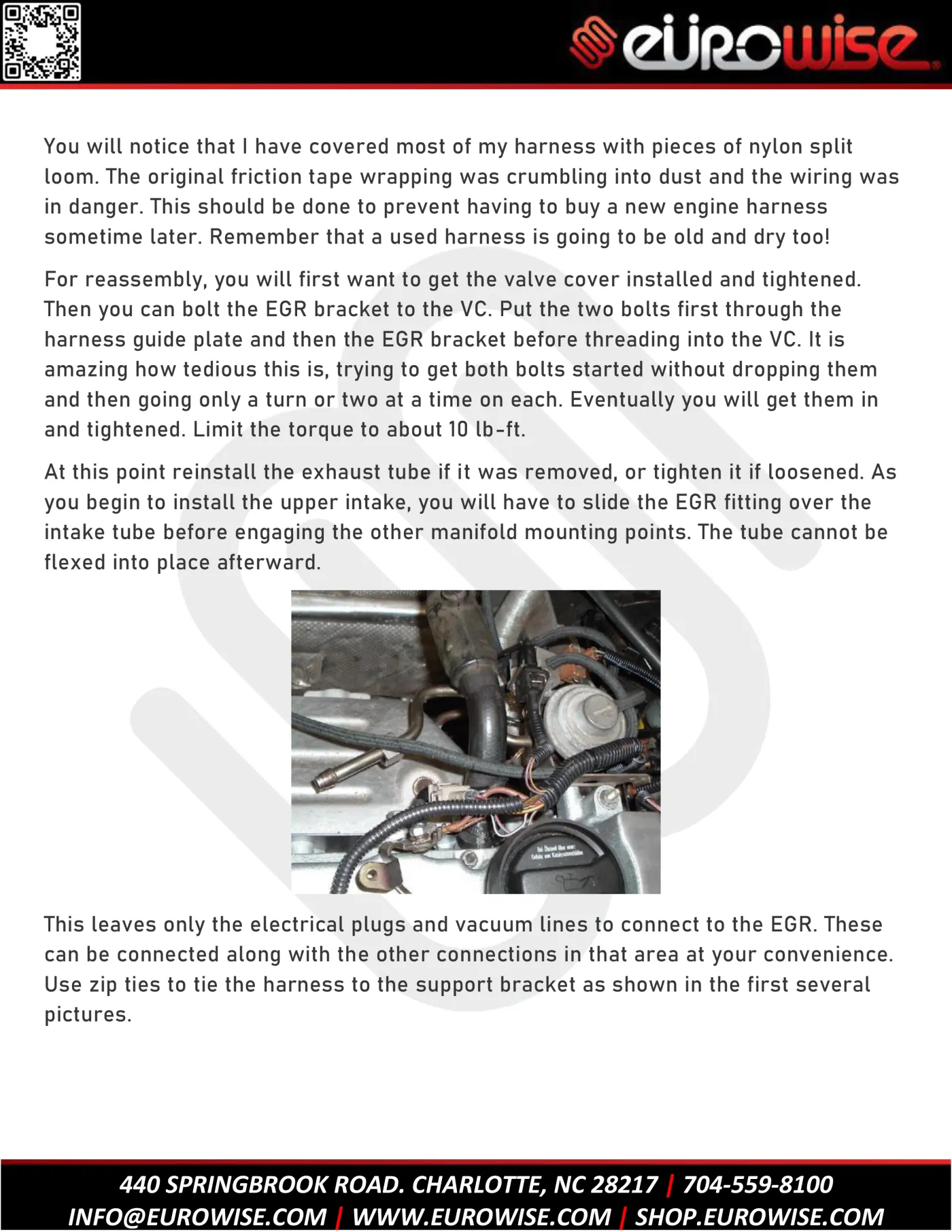

  41. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 41 of 45

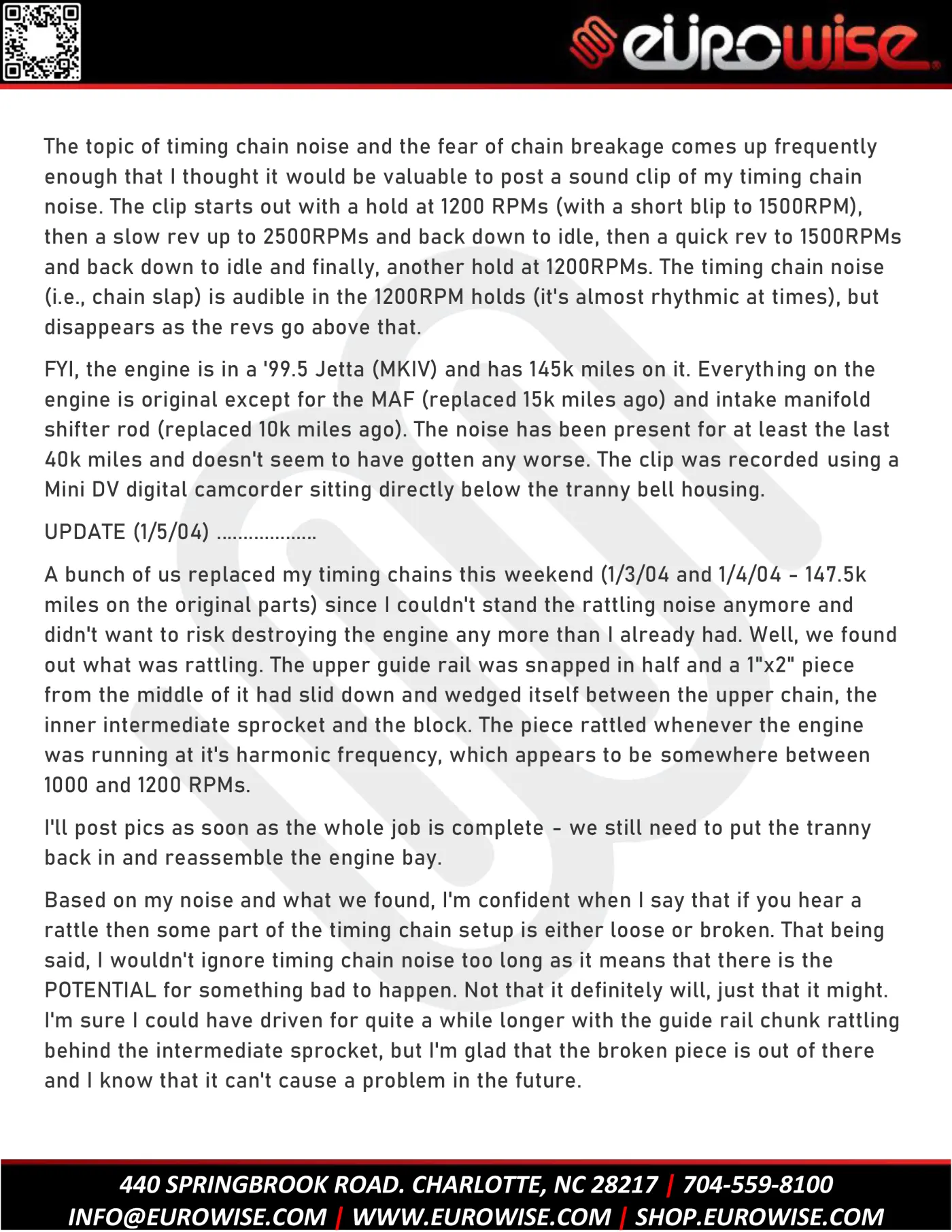

  42. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 42 of 45

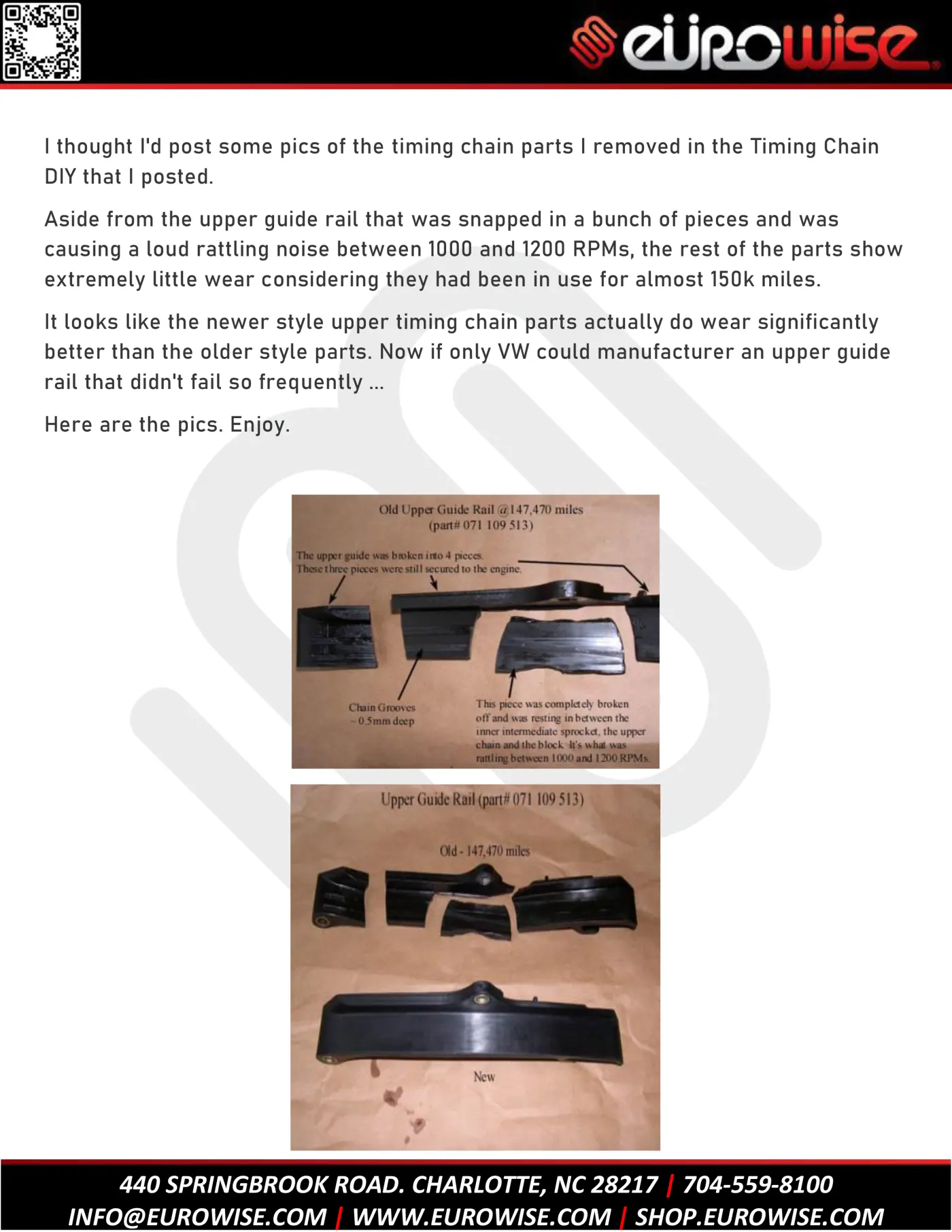

  43. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 43 of 45

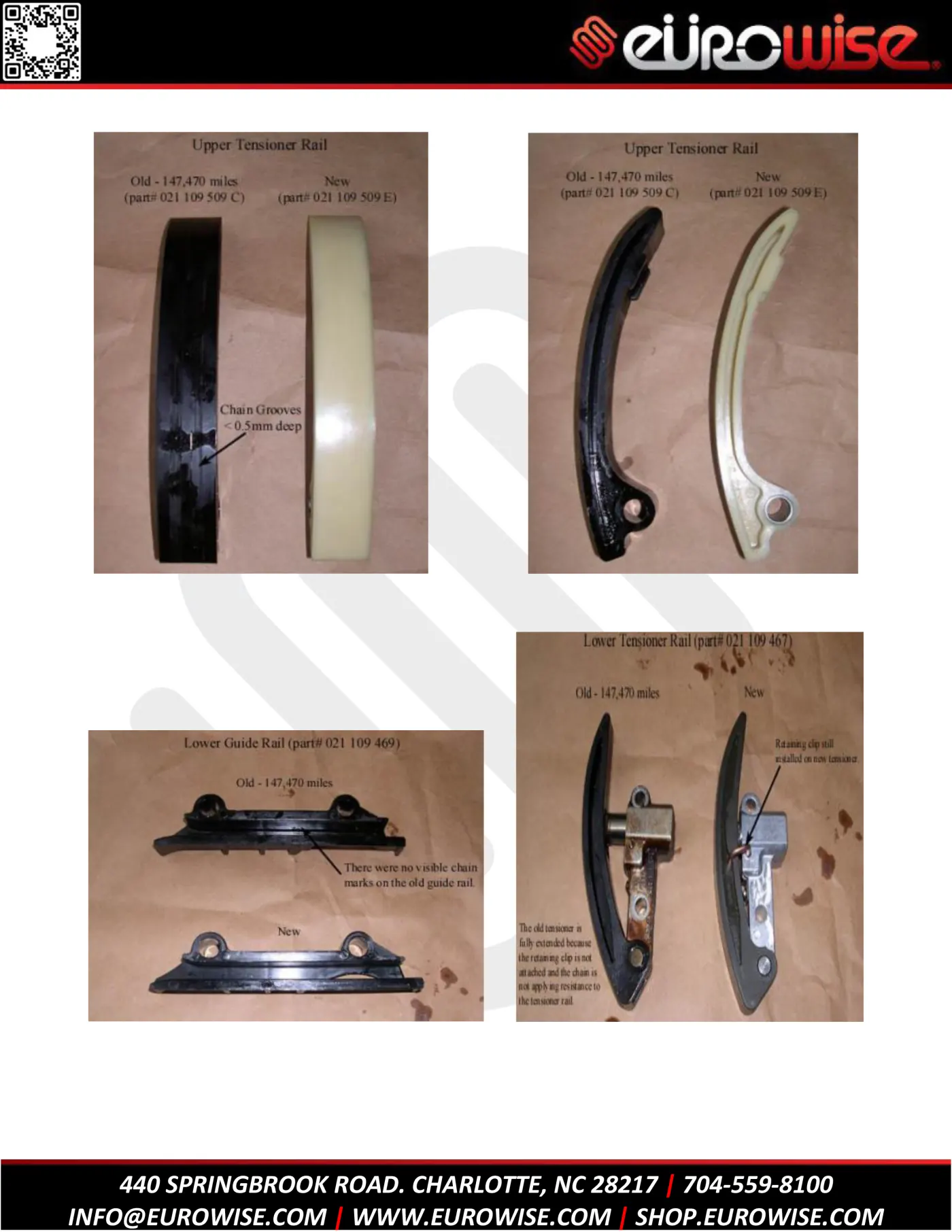

  44. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 44 of 45

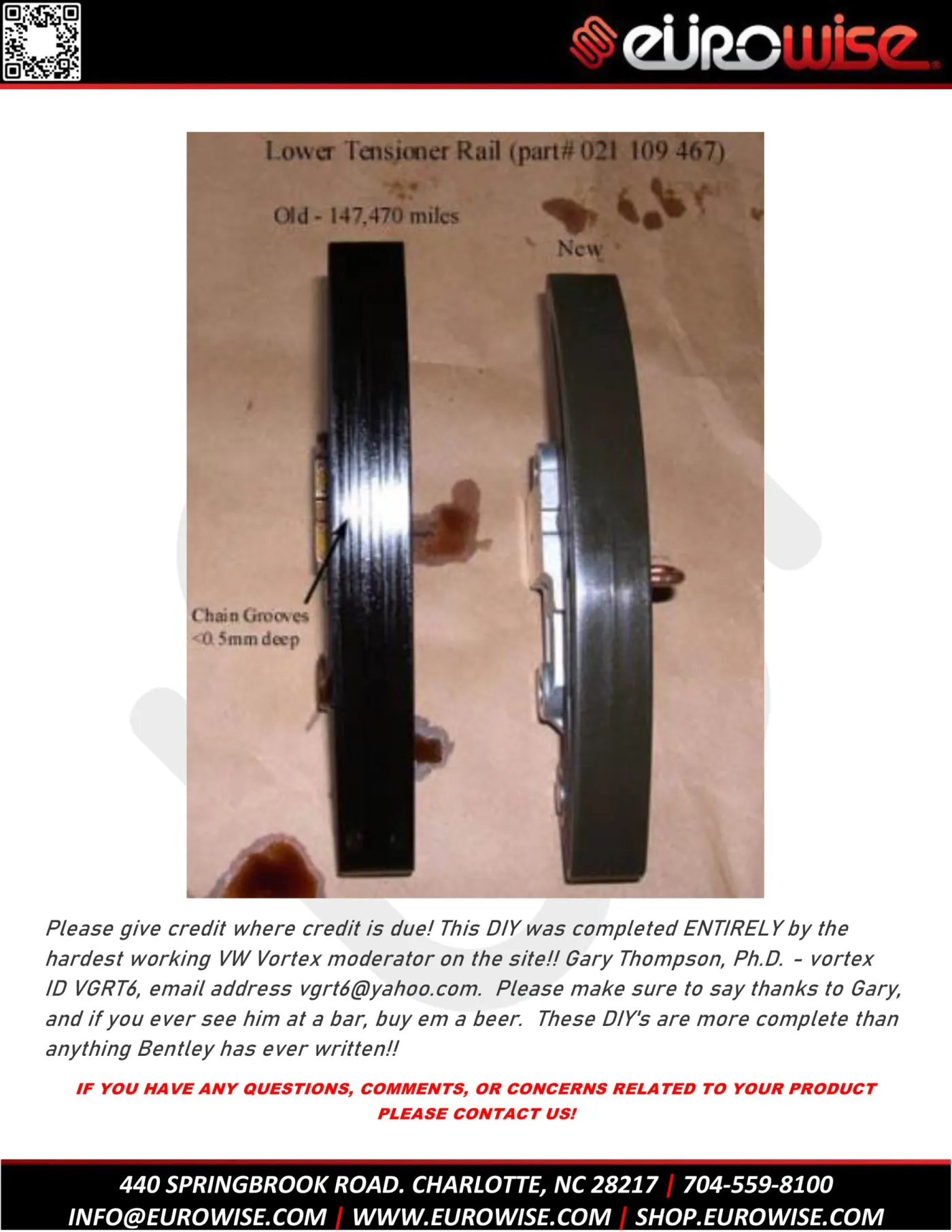

  45. 12V VR6 TIMING CHAIN AND GUIDES REPLACEMENT — page 45 of 45

45 pages — Eurowise
